Part Number # 870-541/281-492
SKU # 2198833
870-541/281-492

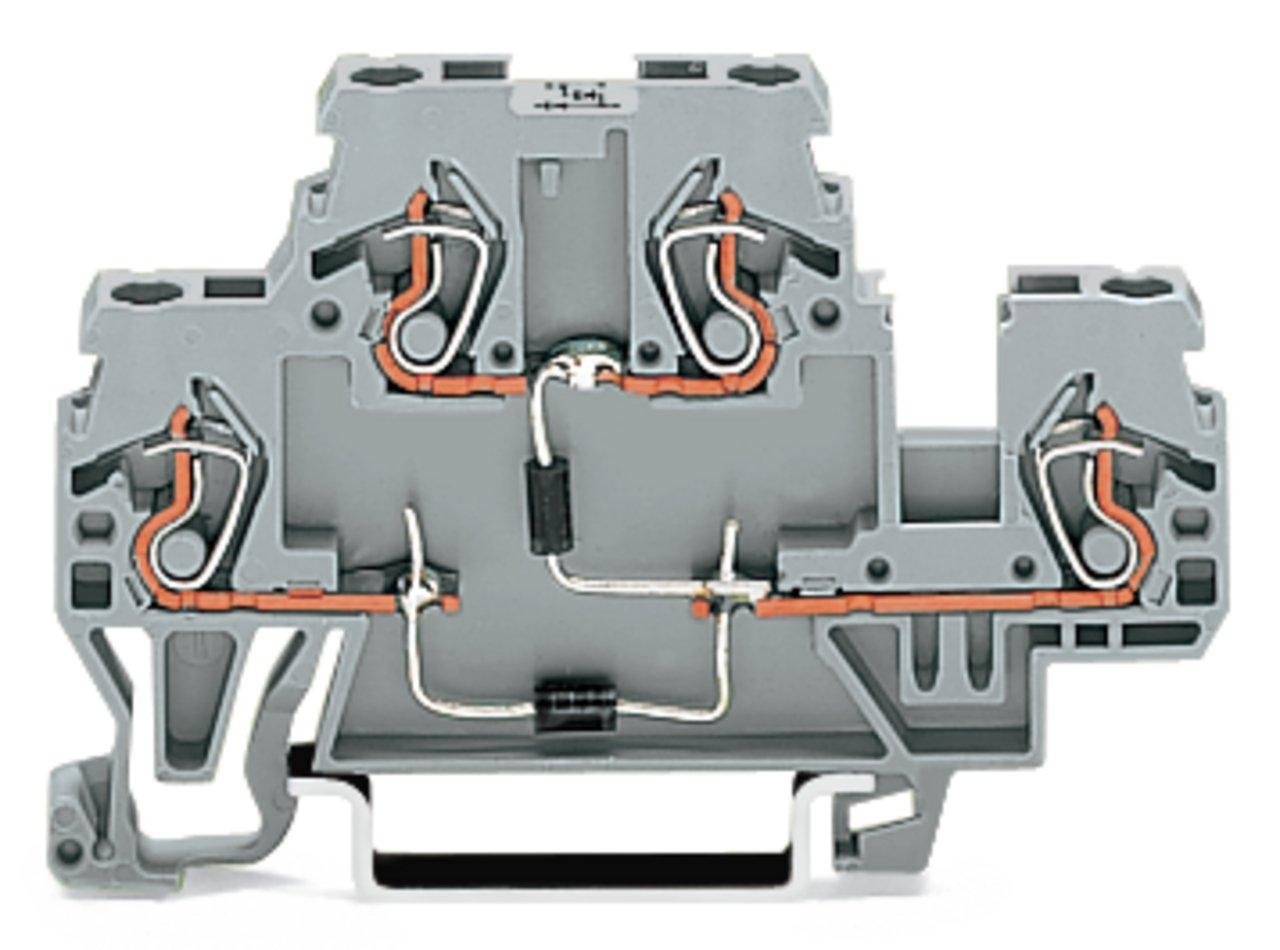

WAGO 870-541/281-492 Component terminal block
Part Number # 870-541/281-492
SKU # 2198833
$16.80 / Each
Typical price:$18.20 / Each
Wago 870-541/281-492 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 870-541/281-492 |
| SKU #: | 2198833 |
| Amperage Rating: | 0.5 A |
| Dimensions: | 2.756 in H x 0.197 in W x 1.575 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 70 mm / 2.756 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 0.5 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 4 |
| Weight: | 9.800 g |
| Width: | 5 mm / 0.197 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454198633 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$16.80 / Each
Typical price:$18.20 / Each
Quantity:
WAGO 870-541/281-492 Component terminal block
Brand: Wago
Part Number: 870-541/281-492
Additional Description: WAGO-870-541/281-492 COMPONENT TERMINAL BLOCK; DOUBLE-DECK; WITH 2 DIODES 1N4007; TOP ANODE, LEFT-SIDE ANODE; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; CAGE CLAMP ; 2,50 MM ; GRAY 51168722
Catalog Description: Component terminal block; double-deck; with 2 diodes 1N4007; Top anode, left-side anode; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; gray
870-541/281-492 Standards
IEC/EN 60947-7-1|RoHS CompliantSKU #2198833Part Number #870-541/281-492UNSPSC39121410UPC04045454198633
