Part Number # 870-556
SKU # 2241740
Image Disclaimers Message
870-556

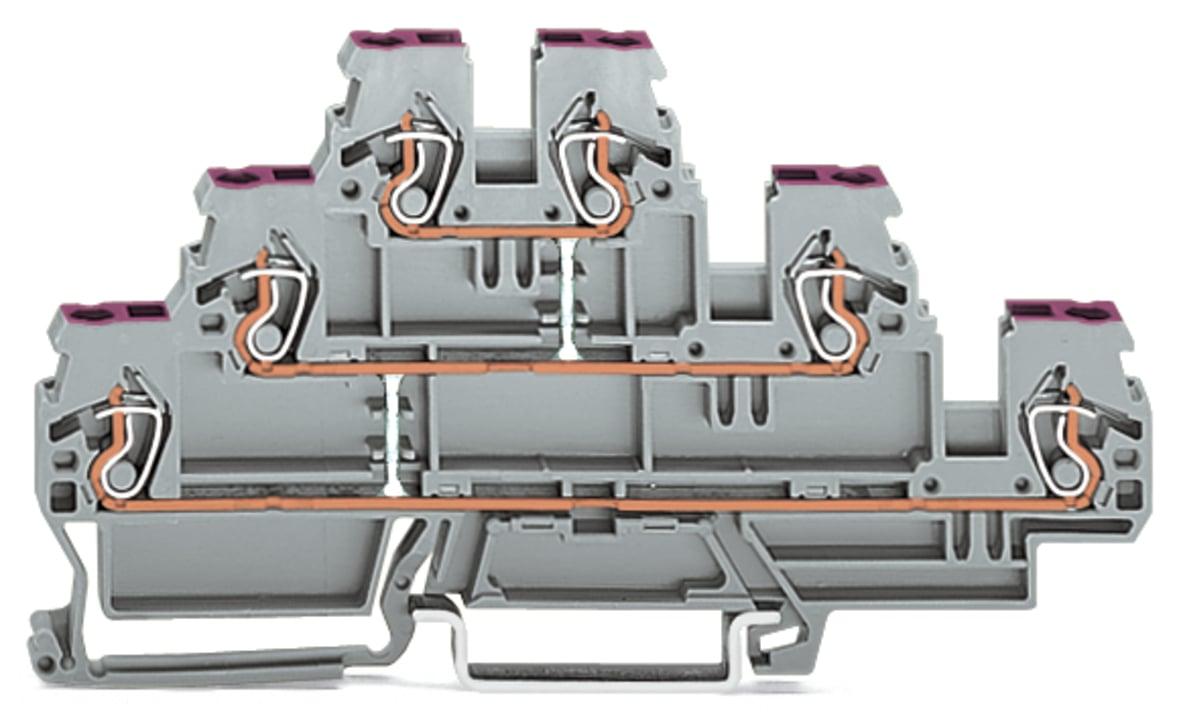

WAGO 870-556 Triple-deck terminal block
Part Number # 870-556
SKU # 2241740
$8.84 / Each
Typical price:$9.58 / Each
Wago 870-556 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 870-556 |
| SKU #: | 2241740 |
| Amperage Rating: | 24 A |
| Dimensions: | 4.173 in H x 0.197 in W x 2.067 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 106 mm / 4.173 inch |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Potential marking: | L |
| Rated current: | 24 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 6 |
| Weight: | 17.837 g |
| Width: | 5 mm / 0.197 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454129705 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$8.84 / Each
Typical price:$9.58 / Each
Quantity:
- WAGO, 870-556, Conductor Terminal Block, Operating Tool, 500 V, 24 A, 1 Pole, 28 to 12 AWG Wire, 0.24 to 0.28 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, Polyamide, Gray, 4.173 in H x 0.197 in W x 2.067 in D Dimensions
870-556 Standards
IEC/EN 60947-7-1|RoHS CompliantSKU #2241740Part Number #870-556UNSPSC39121410UPC04045454129705
