Part Number # 870-557
SKU # 2331438
870-557

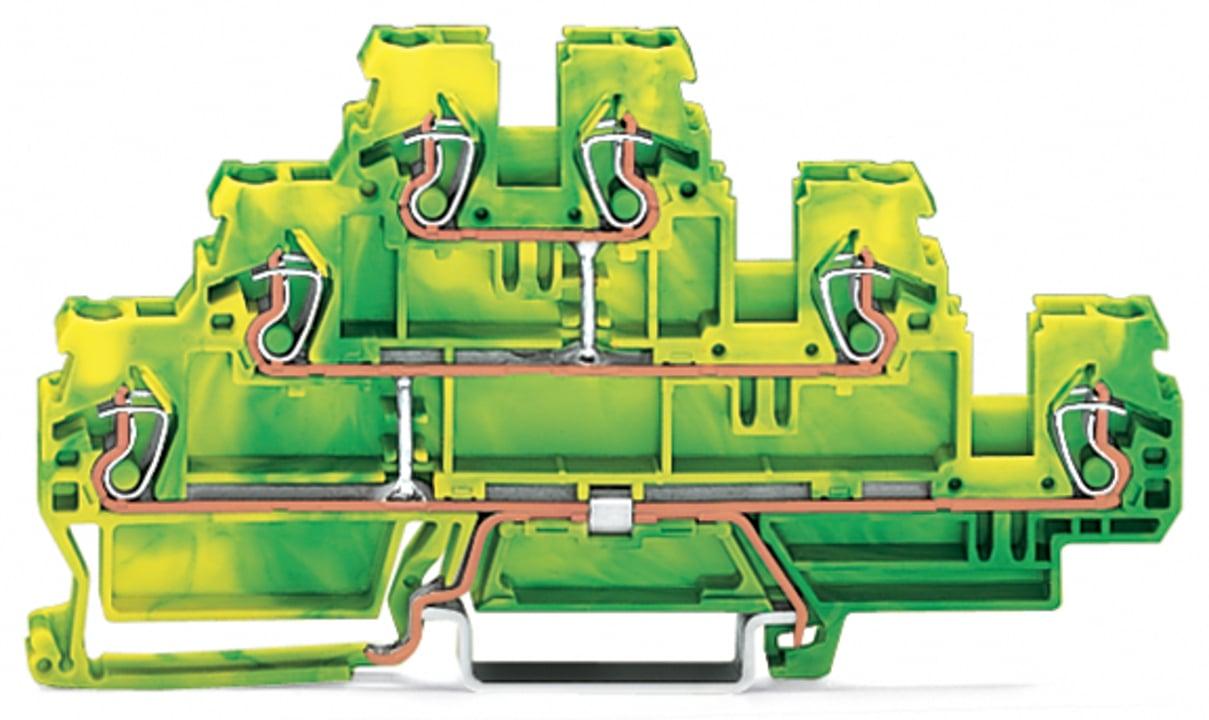

WAGO 870-557 Triple-deck terminal block
Part Number # 870-557
SKU # 2331438
Wago 870-557 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 870-557 |
| SKU #: | 2331438 |

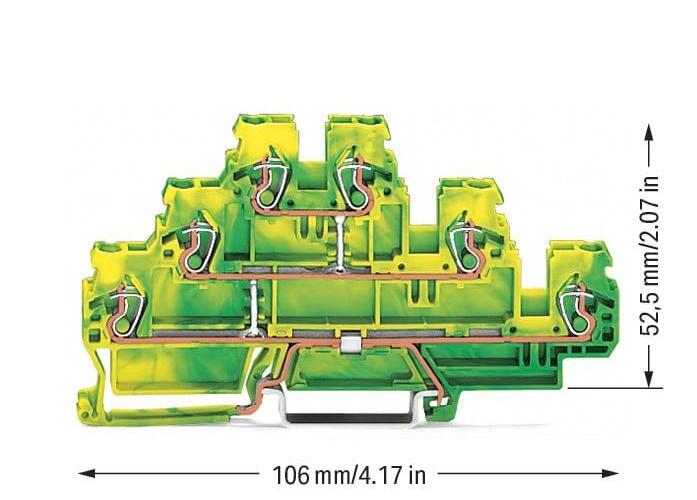

| Dimensions: | 4.173 in H x 0.197 in W x 2.067 in D |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Connection type: | Clamp |
| Depth: | 106 mm / 4.173 inch |
| Potential marking: | PE |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Weight: | 19.339 g |
| Wiring type: | Front-entry wiring |
| UNSPSC: | 39121410 |
| UPC: | 04045454129064 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 870-557 Triple-deck terminal block
Brand: Wago
Part Number: 870-557
Additional Description: WAGO-870-557 TRIPLE-DECK TERMINAL BLOCK; 6-CONDUCTOR GROUND TERMINAL BLOCK; PE; WITHOUT MARKER CARRIER; INTERNAL COMMONING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM; CAGE CLAMP; 2,50 MM; GREEN-YELLOW 51164515 6-CONDUCTOR GROUND TERMINAL BLOCK; PE; WITHOUT MARKER CARRIER; INTERNAL COMMONING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; CAGE CLAMP ; 2,50 MM ; GREEN-YELLOW 51164515
Catalog Description: Triple-deck terminal block; 6-conductor ground terminal block; 2.5 mm²; PE; without marker carrier; internal commoning; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 2,50 mm²; green-yellow
870-557 Standards
IEC/EN 60947-7-2|RoHS CompliantSKU #2331438Part Number #870-557UNSPSC39121410UPC04045454129064
Image provided may only be a representation of final product and may include optional equipment
