Part Number # 870-567
SKU # 2192867
Image provided may only be a representation of
final product and may include optional equipment
870-567

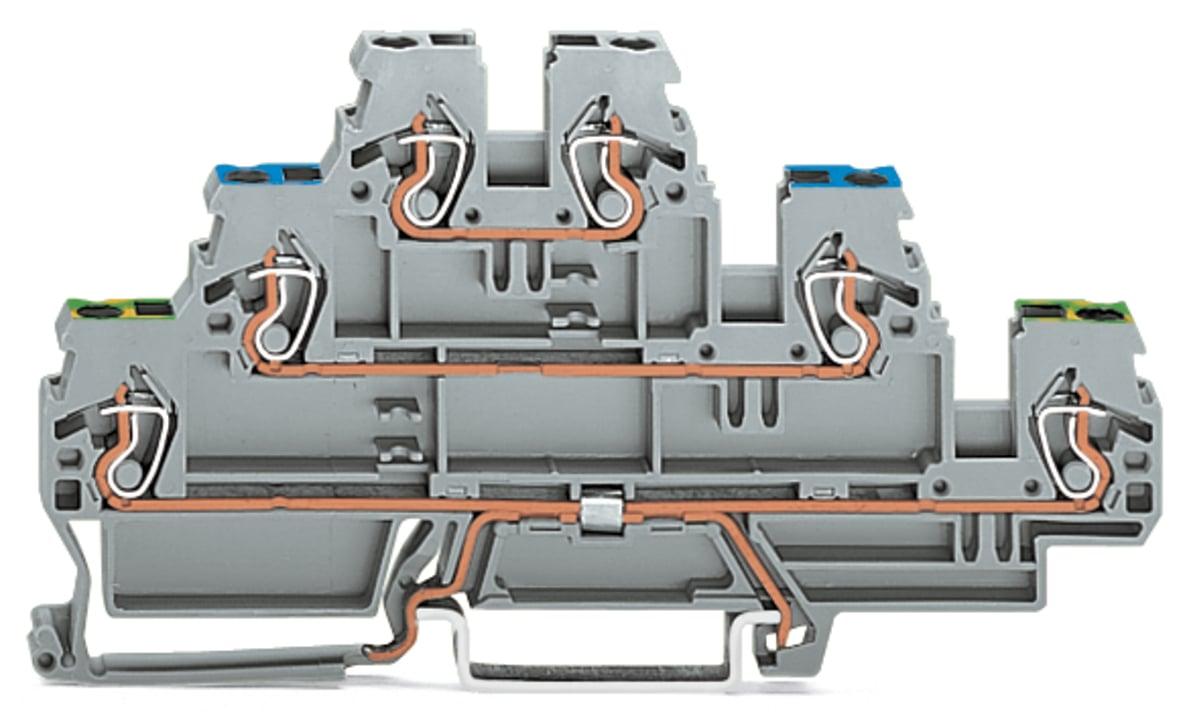

WAGO 870-567 Triple-deck terminal block
Part Number # 870-567
SKU # 2192867
Wago 870-567 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 870-567 |
| SKU #: | 2192867 |
| Amperage Rating: | 24 A |

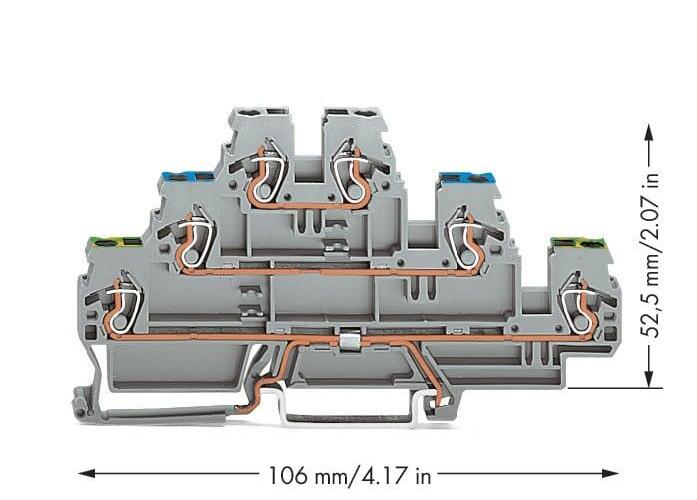

| Dimensions: | 4.173 in H x 0.197 in W x 2.067 in D |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 106 mm / 4.173 inch |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Potential marking: | PE/N/L |
| Rated current: | 24 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 6 |
| Weight: | 18.995 g |
| Width: | 5 mm / 0.197 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454129095 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 870-567 Triple-deck terminal block
Brand: Wago
Part Number: 870-567
Additional Description: WAGO-870-567 TRIPLE-DECK TERMINAL BLOCK; GROUND CONDUCTOR/THROUGH/THROUGH TERMINAL BLOCK; PE/N/L; WITHOUT MARKER CARRIER; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM; CAGE CLAMP; 2,50 MM; GRAY 51164518 CONDUCTOR/THROUGH/THROUGH TERMINAL BLOCK; PE/N/L; WITHOUT MARKER CARRIER; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; CAGE CLAMP ; 2,50 MM ; GRAY 51164518
Catalog Description: Triple-deck terminal block; Ground conductor/through/through terminal block; 2.5 mm²; PE/N/L; without marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 2,50 mm²; gray
870-567 Standards
IEC/EN 60947-7-1|RoHS CompliantSKU #2192867Part Number #870-567UNSPSC39121410UPC04045454129095
