Part Number # 870-590/281-410
SKU # 2218202
870-590/281-410

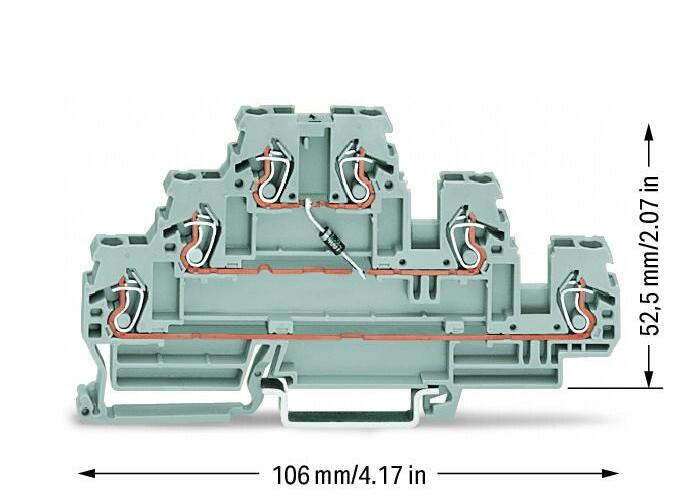

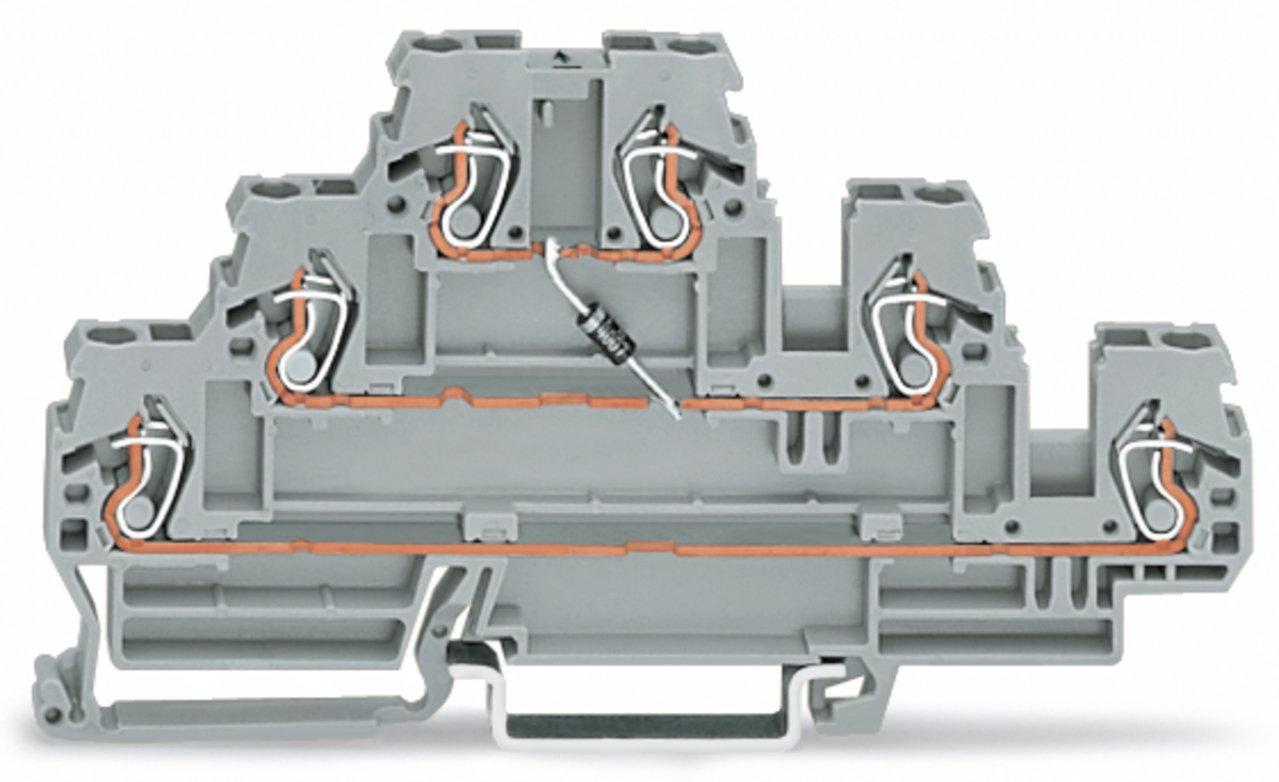

WAGO 870-590/281-410 Component terminal block
Part Number # 870-590/281-410
SKU # 2218202
$17.82 / Each
Typical price:$19.30 / Each
Wago 870-590/281-410 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 870-590/281-410 |
| SKU #: | 2218202 |
| Amperage Rating: | 0.5 A |
| Dimensions: | 4.173 in H x 0.197 in W x 2.067 in D |
| Number of Poles: | 2 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 106 mm / 4.173 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 0.5 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 6 |
| Weight: | 17.210 g |
| Width: | 5 mm / 0.197 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454198749 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$17.82 / Each
Typical price:$19.30 / Each
Quantity:
WAGO 870-590/281-410 Component terminal block
Brand: Wago
Part Number: 870-590/281-410
Additional Description: WAGO-870-590/281-410 COMPONENT TERMINAL BLOCK; TRIPLE-DECK; WITH DIODE 1N4007; ANODE, LEFT SIDE; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; CAGE CLAMP ; 2,50 MM ; GRAY 51168733
Catalog Description: Component terminal block; triple-deck; with diode 1N4007; anode, left side; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; gray
870-590/281-410 Standards
IEC/EN 60947-7-1|RoHS CompliantSKU #2218202Part Number #870-590/281-410UNSPSC39121410UPC04045454198749
