Part Number # 870-593/281-434
SKU # 2391625
Image Disclaimers Message
870-593/281-434

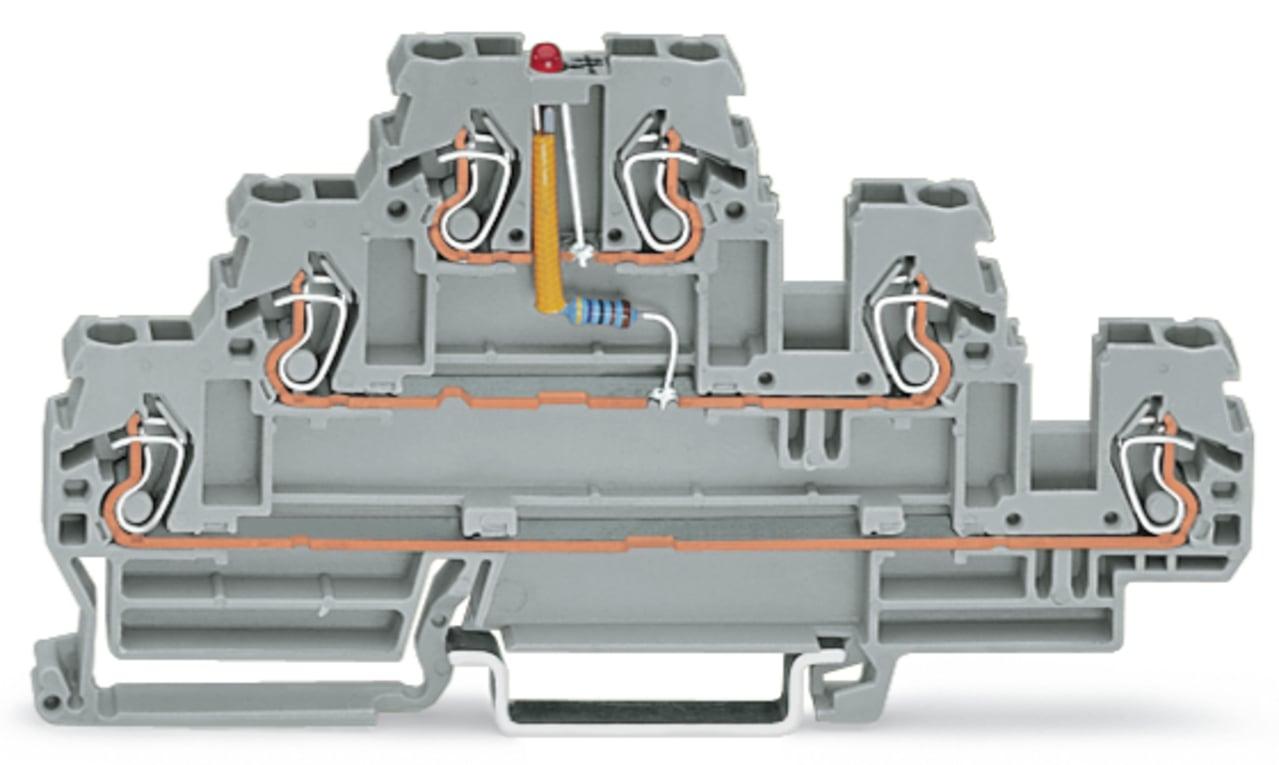

WAGO 870-593/281-434 Triple-deck LED terminal block
Part Number # 870-593/281-434
SKU # 2391625
$16.33 / Each
Typical price:$17.69 / Each
Wago 870-593/281-434 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 870-593/281-434 |
| SKU #: | 2391625 |
| Amperage Rating: | 0.025 A |

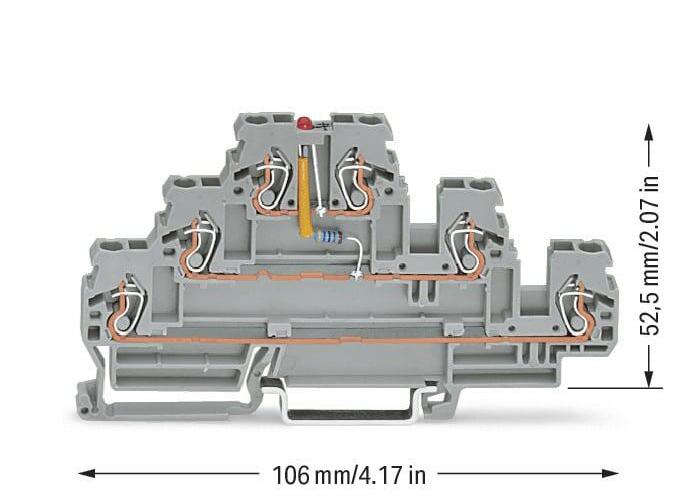

| Dimensions: | 4.173 in H x 0.197 in W x 2.067 in D |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Color: | Gray |
| Connection type: | Clamp |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454198831 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$16.33 / Each
Typical price:$17.69 / Each
Quantity:
WAGO 870-593/281-434 Triple-deck LED terminal block
Brand: Wago
Part Number: 870-593/281-434
Additional Description: WAGO-870-593/281-434 COMPONENT TERMINAL BLOCK; TRIPLE-DECK; LED (RED); 24 VDC; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM; CAGE CLAMP; 2,50 MM; GRAY 51168742
Catalog Description: Component terminal block; triple-deck; LED (red); 24 VDC; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; gray
870-593/281-434 Standards
IEC/EN 60947-7-1|RoHS CompliantSKU #2391625Part Number #870-593/281-434UNSPSC39121410UPC04045454198831
