Part Number # 870-682
SKU # 2290290
Image Disclaimers Message
Brand: Wago
870-682

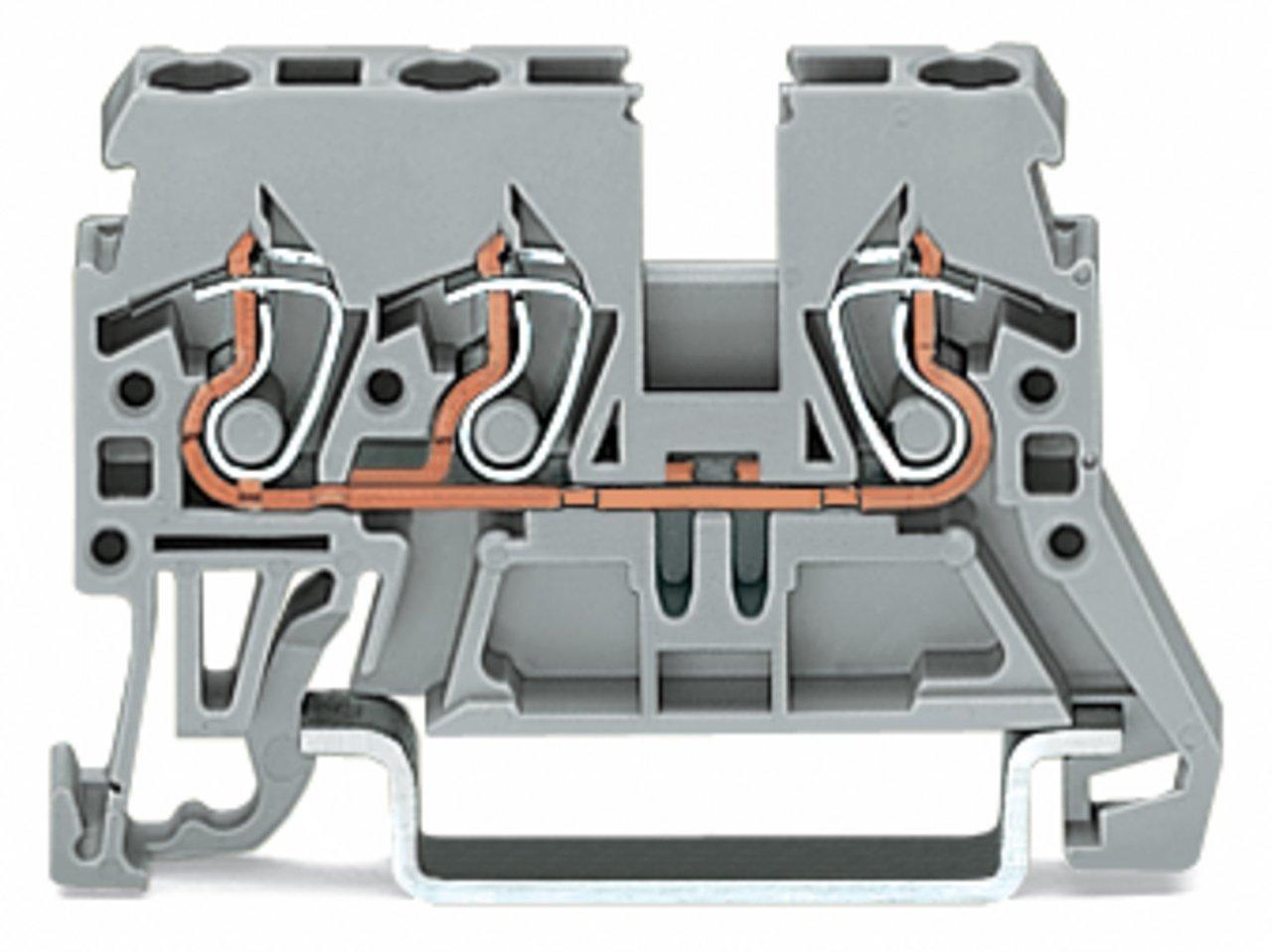

WAGO 870-682 3-conductor through terminal block
Part Number # 870-682
SKU # 2290290
$1.97 / Each
Typical price:$2.13 / Each
Wago 870-682 Key Features
Brand: | Wago |
---|---|
Part Number # : | 870-682 |
SKU #: | 2290290 |
Amperage Rating: | 24 A |
Dimensions: | 1.929 in H x 0.197 in W x 1.083 in D |
Number of Poles: | 1 |
Type: | Operating Tool |
Wire Size: | 28 to 12 AWG |
Actuation type: | Operating tool |
Color: | Orange |
Connection technology: | CAGE CLAMP® |
Connection type: | Clamp |
Country of origin: | DE |
Depth: | 49 mm / 1.929 inch |
Insulation material: | Polyamide (PA66) |
Material: | Polyamide |
Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
Rated current: | 24 A |
Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
Total number of connection points: | 3 |
Weight: | 5.928 g |
Width: | 5 mm / 0.197 inch |
Wiring type: | Front-entry wiring |
Manufacturer Name: | WAGO Corporation |
UNSPSC: | 39121410 |
UPC: | 04045454094560 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1.97 / Each
Typical price:$2.13 / Each
Quantity:
- WAGO, 870-682, Conductor Terminal Block, Operating Tool, 500 V, 24 A, 1 Pole, 28 to 12 AWG Wire, 0.24 to 0.28 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, Polyamide, Orange, 1.929 in H x 0.197 in W x 1.083 in D Dimensions
870-682 Standards
IEC/EN 60947-7-1|RoHS CompliantSKU #2290290Part Number #870-682UNSPSC39121410UPC04045454094560
