870-687

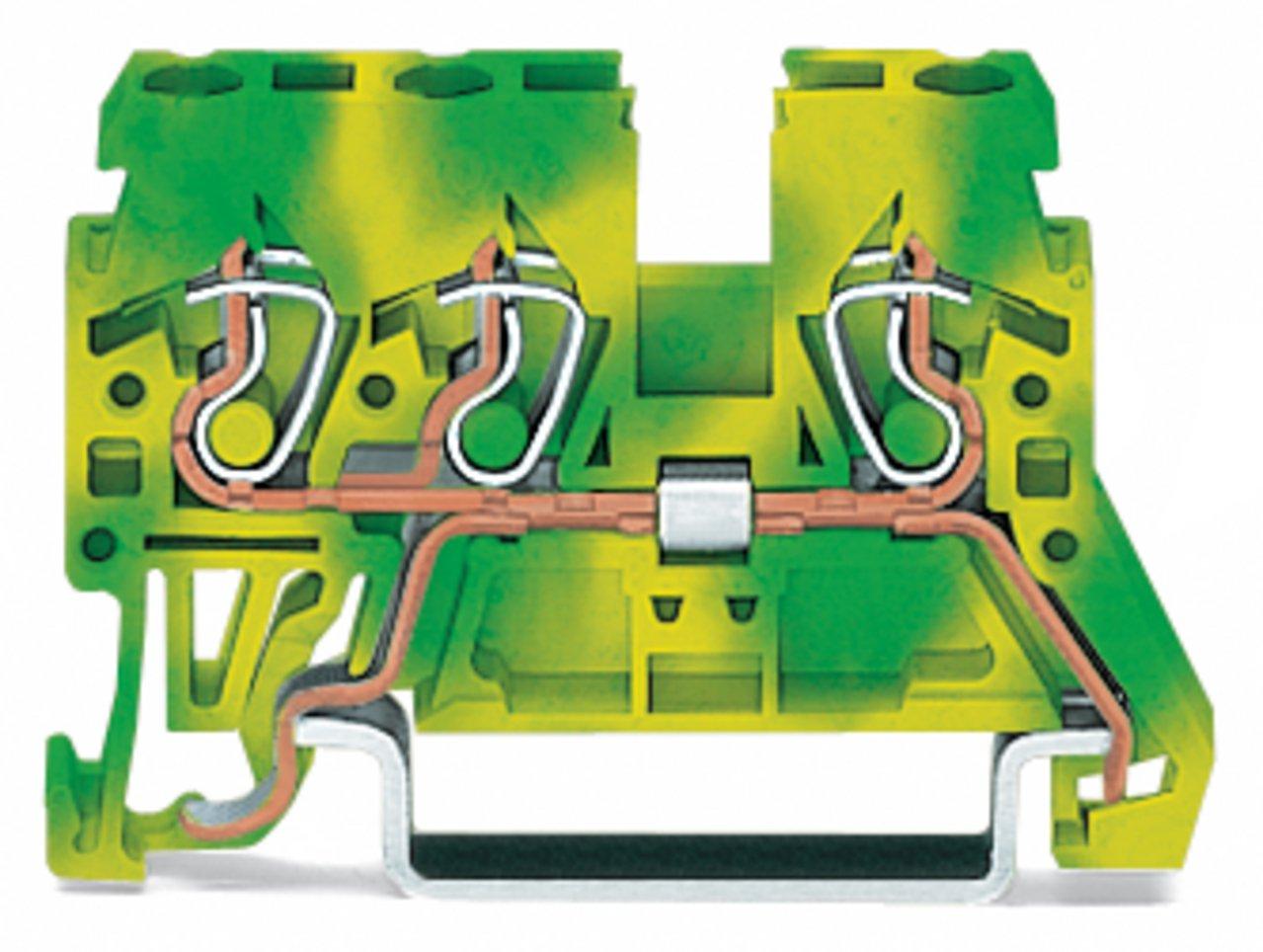

WAGO 870-687 3-conductor ground terminal block
Part Number # 870-687
SKU # 2292254
$4.99 / Each
Typical price:$5.41 / Each
Wago 870-687 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 870-687 |
| SKU #: | 2292254 |

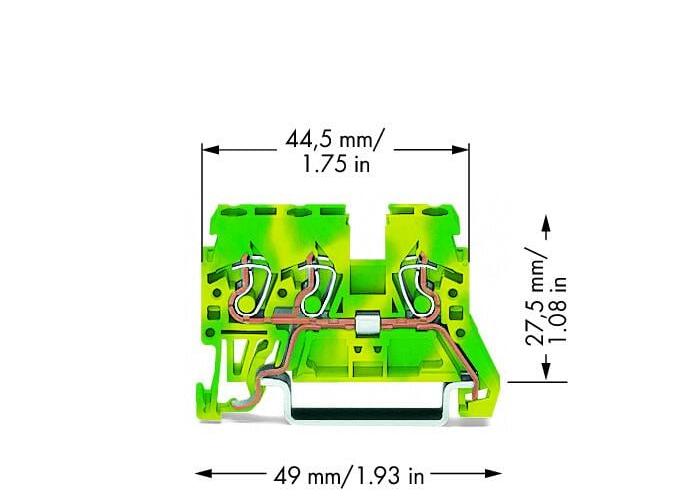

| Dimensions: | 1.929 in H x 0.197 in W x 1.083 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Color: | Green-yellow, Green/Yellow |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 49 mm / 1.929 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 3 |
| Weight: | 7.297 g |
| Width: | 5 mm / 0.197 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454094607 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4.99 / Each
Typical price:$5.41 / Each
Quantity:
- WAGO, 870-687, Ground Terminal Block, Operating Tool, 1 Pole, 28 to 12 AWG Wire, 0.24 to 0.28 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, -35 to 85 deg C, Polyamide, Green/Yellow, 1.929 in H x 0.197 in W x 1.083 in D Dimensions
870-687 Standards
IEC/EN 60947-7-2|RoHS CompliantSKU #2292254Part Number #870-687UNSPSC39121410UPC04045454094607
