870-837

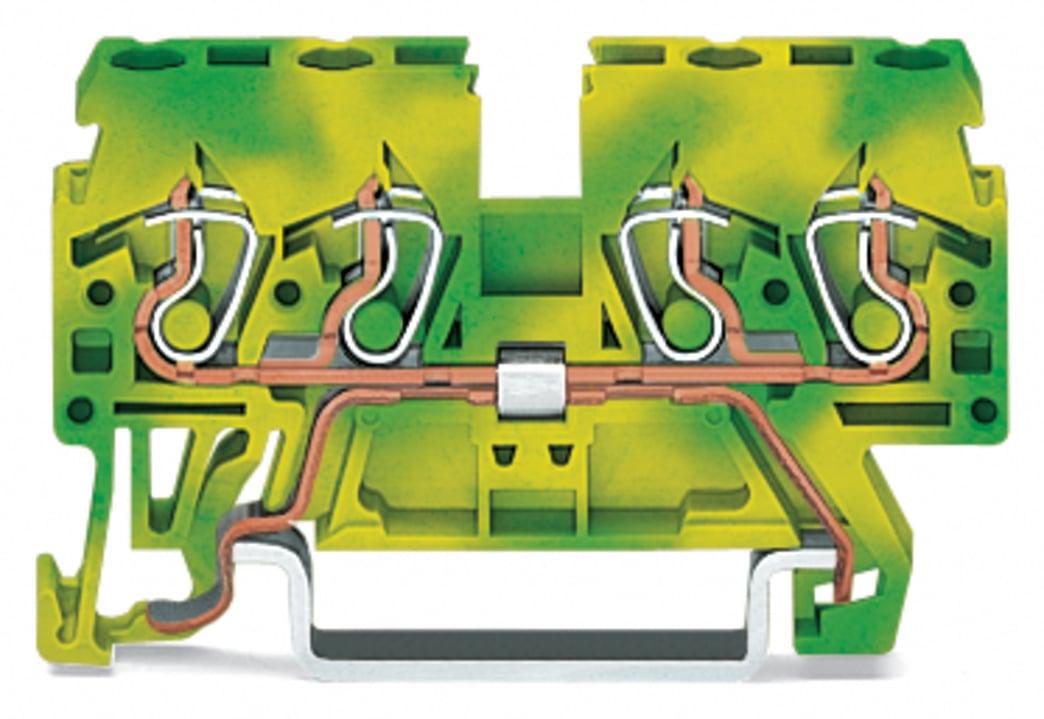

WAGO 870-837 4-conductor ground terminal block
Part Number # 870-837
SKU # 2252247
$6.52 / Each
Typical price:$7.06 / Each
Wago 870-837 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 870-837 |
| SKU #: | 2252247 |

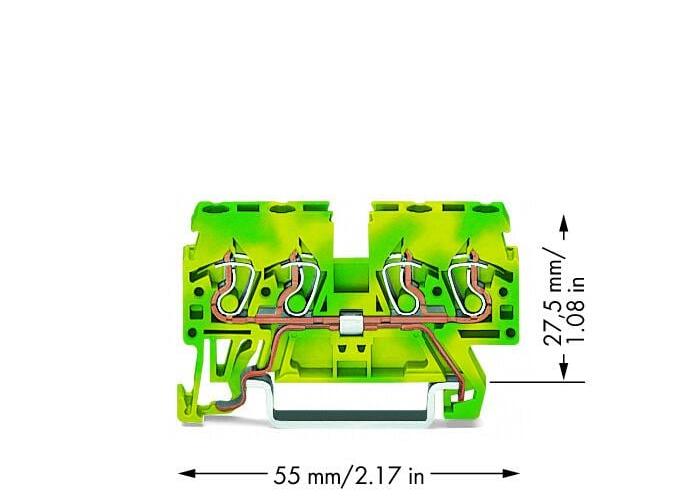

| Dimensions: | 2.165 in H x 0.197 in W x 1.083 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Color: | Green-yellow, Green/Yellow |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 55 mm / 2.165 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 4 |
| Weight: | 8.667 g |
| Width: | 5 mm / 0.197 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454094676 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6.52 / Each
Typical price:$7.06 / Each
Quantity:
WAGO 870-837 4-conductor ground terminal block
Brand: Wago
Part Number: 870-837
Additional Description: WAGO-870-837 4-CONDUCTOR GROUND TERMINAL BLOCK; 2.5 MM ; LATERAL MARKER SLOTS; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; CAGE CLAMP ; 2,50 MM ; GREEN-YELLOW 51161767
Catalog Description: 4-conductor ground terminal block; 2.5 mm²; lateral marker slots; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 2,50 mm²; green-yellow
870-837 Standards
IEC/EN 60947-7-2|RoHS CompliantSKU #2252247Part Number #870-837UNSPSC39121410UPC04045454094676
