870-907

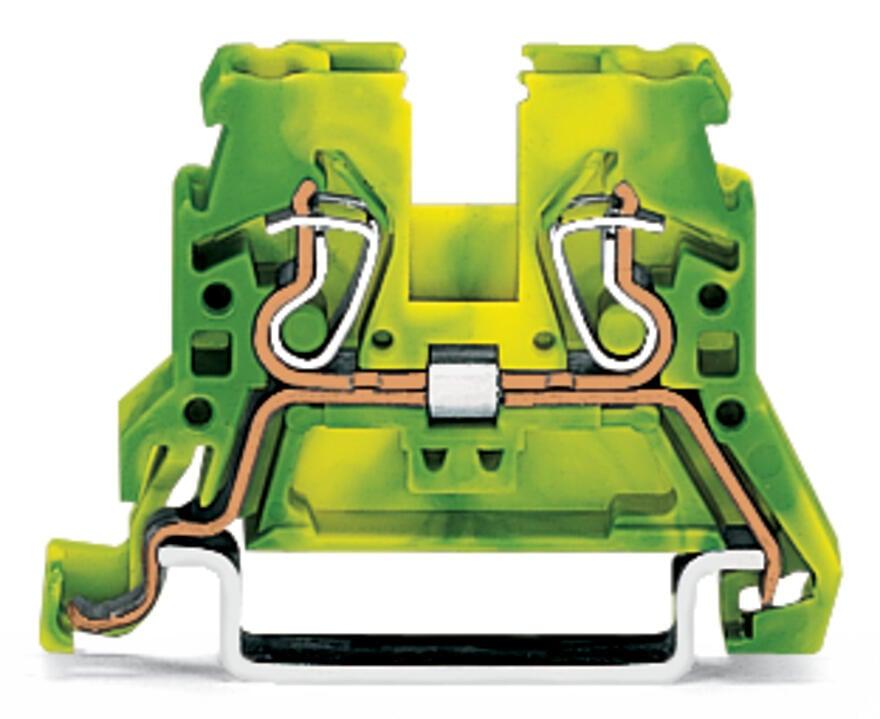

WAGO 870-907 2-conductor ground terminal block
Part Number # 870-907
SKU # 365385
Wago 870-907 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 870-907 |
| SKU #: | 365385 |
| Dimensions: | 1.752 in H x 0.197 in W x 1.083 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Color: | Green-yellow, Green/Yellow |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 44.5 mm / 1.752 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 2 |
| Weight: | 5.703 g |
| Width: | 5 mm / 0.197 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918649728 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 870-907 2-conductor ground terminal block
Brand: Wago
Part Number: 870-907
Wago 870-907 Ground Terminal Block, 870 Series, 2 Terminals, Wire Size: 28 - 14 AWG, 24 AMP, UL: 20 AMP, 500 V, UL: 300 V, Green/Yellow, TS Din 35 Rail Mount, Cage Clamp, Front-Entry Wiring Connection, 0.197 IN Width X 1-3/4 IN Depth X 1.08 IN Height, Strip Length: 0.26 IN, RoHS Compliant, ABS 05-HG476175/3-PDA, CCA NL6826, DNV E-9214, GL 17295-00HH, KEMA 2143311.01, LR 91/20112(E6), PTB PTB03Atex1188U, RosTest 8189158 , C/US UL E45172 Listed
Additional Description: WAGO-870-907 2-CONDUCTOR GROUND TERMINAL BLOCK; 2.5 MM; LATERAL MARKER SLOTS; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; CAGE CLAMP; 2,50 MM; GREEN-YELLOW 51140502 2.5 MM ; LATERAL MARKER SLOTS; FOR CLAMP ; 2,50 MM ; GREEN-YELLOW 51140502
Catalog Description: 2-conductor ground terminal block; 2.5 mm²; lateral marker slots; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 2,50 mm²; green-yellow
870-907 Standards
IEC/EN 60947-7-2|RoHS CompliantSKU #365385Part Number #870-907UNSPSC39121410UPC04044918649728
