Part Number # 870-917
SKU # 999562
Image provided may only be a representation of
final product and may include optional equipment
870-917

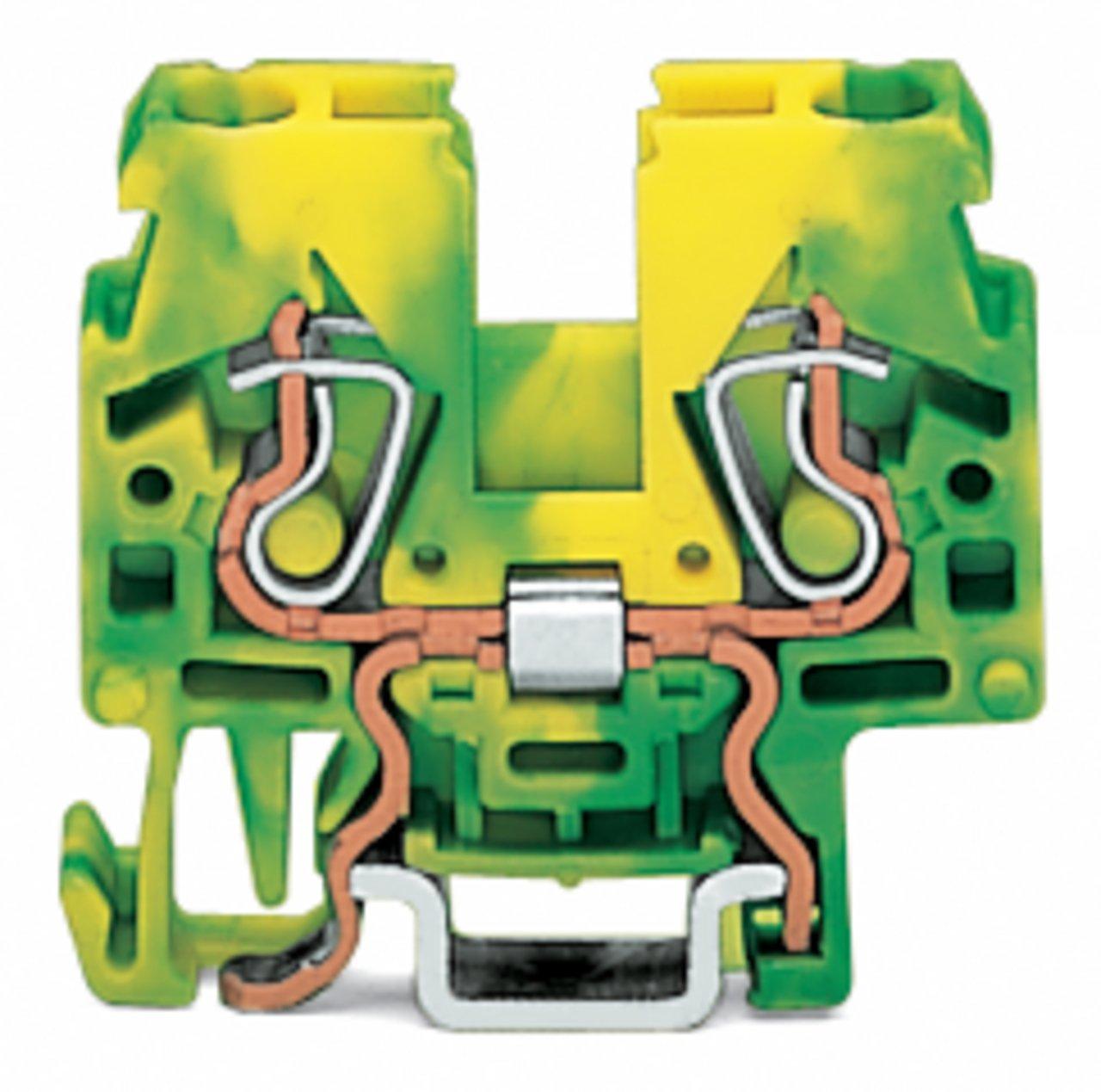

WAGO 870-917 2-conductor ground terminal block
Part Number # 870-917
SKU # 999562
Wago 870-917 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 870-917 |
| SKU #: | 999562 |

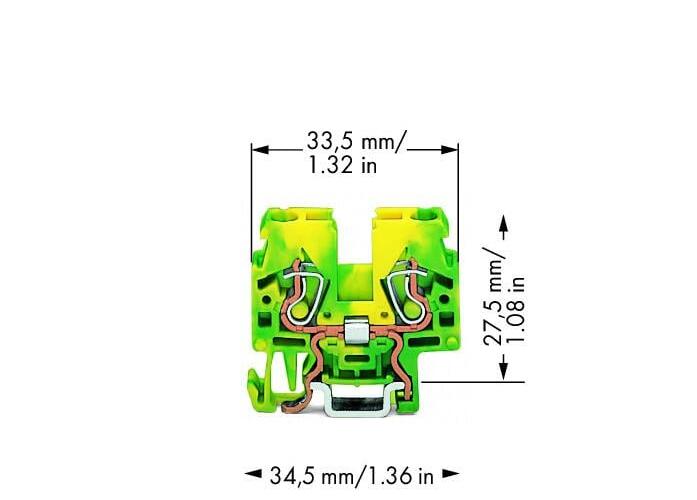

| Dimensions: | 1.358 in H x 0.197 in W x 1.043 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 34.5 mm / 1.358 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-15 rail |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 2 |
| Weight: | 5.006 g |
| Width: | 5 mm / 0.197 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454567866 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 870-917 2-conductor ground terminal block
Brand: Wago
Part Number: 870-917
Wago 870-917 Ground Terminal Block, 870 Series, 2 Terminals, Wire Size: 28 - 14 AWG, 24 AMP, UL: 20 AMP, 500 V, UL: 300 V, Green/Yellow, TS 15 Rail Mount, Cage Clamp, Front-Entry Wiring Connection, 0.197 IN Width X 1.36 IN Depth X 1.04 IN Height, Strip Length: 0.26 IN, RoHS Compliant, ABS 05-HG476175/3-PDA, CCA NL6826, DNV E-9214, GL 17295-00HH, KEMA 2143311.01, LR, C/US UL 91/20112(E6) Listed
Additional Description: WAGO-870-917 2-CONDUCTOR GROUND TERMINAL BLOCK; 2.5 MM; LATERAL MARKER SLOTS; FOR DIN-15 RAIL; CAGE CLAMP; 2,50 MM; GREEN-YELLOW 51192142 DIN-15 RAIL; CAGE CLAMP ; 2,50 MM ; GREEN-YELLOW 51192142
Catalog Description: 2-conductor ground terminal block; 2.5 mm²; lateral marker slots; for DIN-15 rail; CAGE CLAMP®; 2,50 mm²; green-yellow
870-917 Standards
IEC/EN 60947-7-2|DIN 15|RoHS CompliantSKU #999562Part Number #870-917UNSPSC39121410UPC04045454567866
