- 1 Clamping Points
- 1 Potentials
Specifications
Brand: Wago
Series: 885
Type: Slotted
Actuation type: Open-end, ring, socket wrench; 10 mm; not offered by WAGO
Approvals per: C22.2 No 158, UL 1059
Color: Gray
Connection technology: Studs connection
Country of origin: CN
Depth: 67 mm / 2.638 inch
Material: Polyamide (PA66)
Mounting type: DIN-35 rail
Rated current: 125 A
Total number of connection points: 1
Weight: 27.400 g
Width: 17.8 mm / 0.701 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 39121410
UPC: 04050821049227

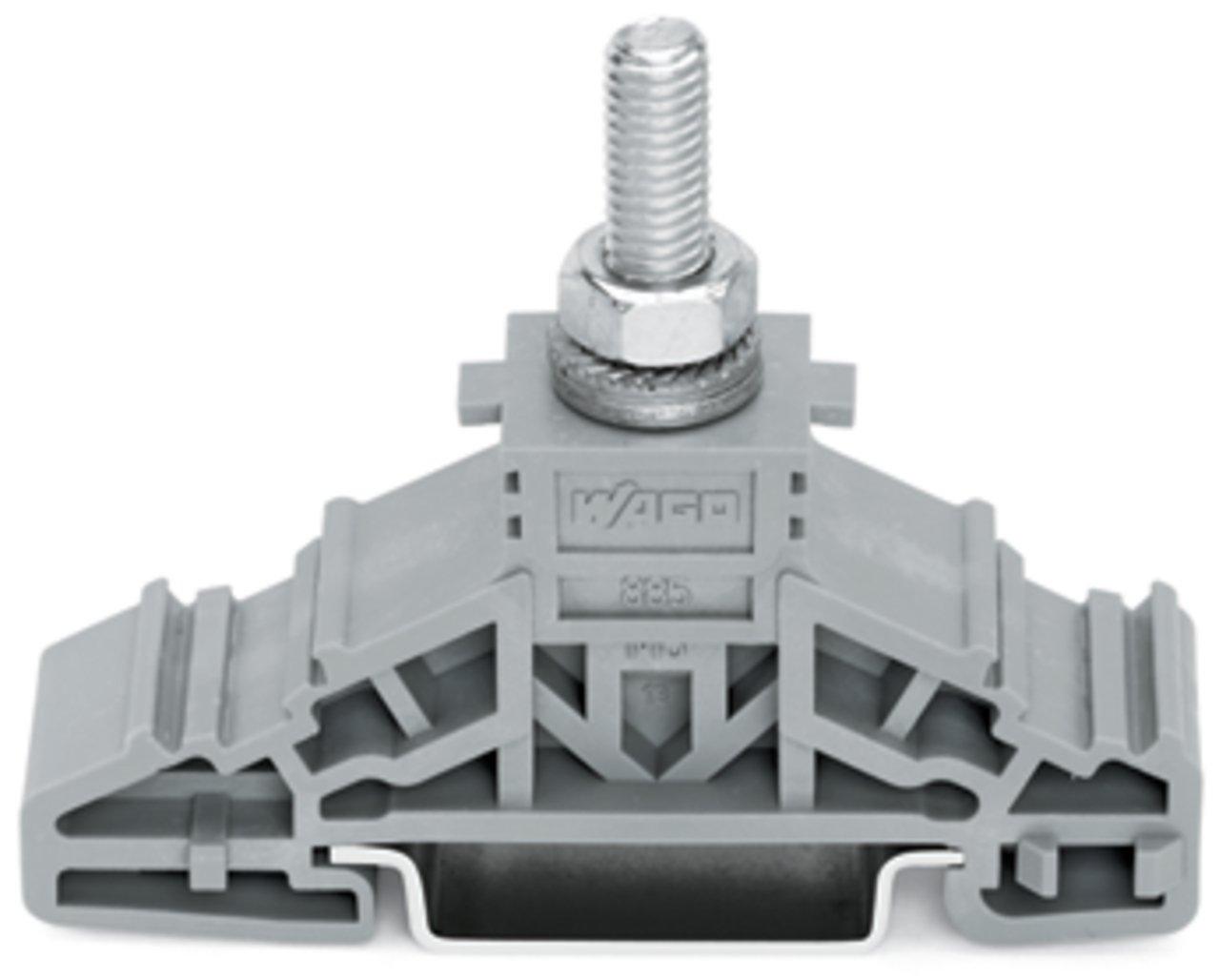

WAGO 885-106 Stud terminal block
WAGO, 885-106, Terminal Block, Slotted, Series: 885, 1.91 in Length, 0.70 in Width, 2.63 in Height, Polyamide (PA66), For Use With: For Rail Mounted Terminal Blocks
Additional Description: WAGO-885-106 STUD TERMINAL BLOCK; LATERAL MARKER SLOTS; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 1 STUD, M6; 35,00 MM; GRAY 8850106 X 7.5; 1 STUD, M6; 35,00 MM ; GRAY 08850106
Catalog Description: Stud terminal block; lateral marker slots; for DIN-rail 35 x 15 and 35 x 7.5; 1 stud, M6; 35,00 mm²; gray
Item Features
Item FeaturesRoHS Compliant
