Part Number # 890-102

SKU # 2212449

Image Disclaimers Message

Brand: Wago

890-102

WAGO 890-102 Wire Connectors

Part Number # 890-102

SKU # 2212449

$3.96 / Each
Typical price:$4.29 / Each

Wago 890-102 Key Features

Brand:Wago
Part Number # :890-102
SKU #:2212449
Connector Type:Socket

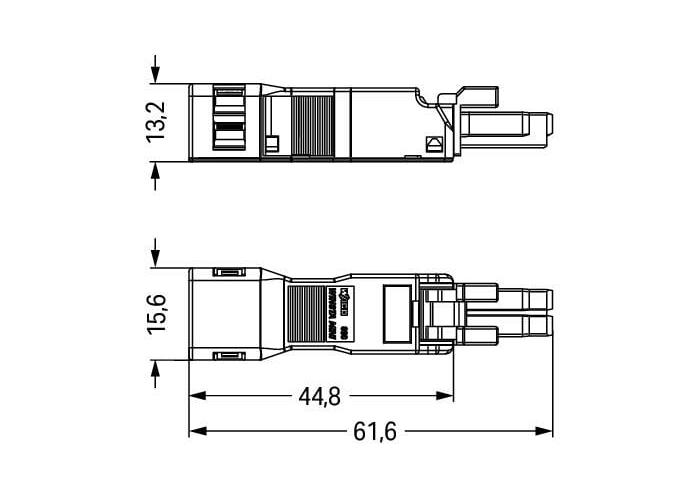

Dimensions:0.52 in H x 0.61 in W x 2.42 in D
Number of Positions:2
Specifications:-35 to 85 degree C Continuous Operating Temperature
Suitable For Use With:General Mains Application
Type:Operating Tool
Actuation type:Operating tool || Push-in
Application:General mains applications
Coding:A
Color:Black
Conductor entry direction to mating direction:0 °
Connection technology:Push-in CAGE CLAMP®
Connector (connection type):For conductor
Contact material:Copper or copper alloy (surface-treated)
Country of origin:DE
Depth:61.6 mm / 2.425 inch
Height:13.2 mm / 0.52 inch
Insulation material:Polyamide (PA66)
Marking:L N
Material:Polyamide (PA66)
Nominal cross-section:1.5 mm²
Potential marking:L N
Protection type:IP40
Rated current:16 A
Solid conductor:0.25 … 1.5 mm² / 22 … 16 AWG
Strain relief:Strain relief housing
Stranded conductor:0.25 … 1 mm² / 22 … 18 AWG
Total number of connection points:2
Weight:5.614 g
Width:15.6 mm / 0.614 inch
Manufacturer Name:WAGO Corporation
UNSPSC:39121409
UPC: 04045454231729
