Part Number # 890-104

SKU # 2297885

Image Disclaimers Message

Brand: Wago

890-104

WAGO 890-104 Wire Connectors

Part Number # 890-104

SKU # 2297885

$6.42 / Each
Typical price:$6.96 / Each

Wago 890-104 Key Features

Brand:Wago
Part Number # :890-104
SKU #:2297885
Connector Type:Socket

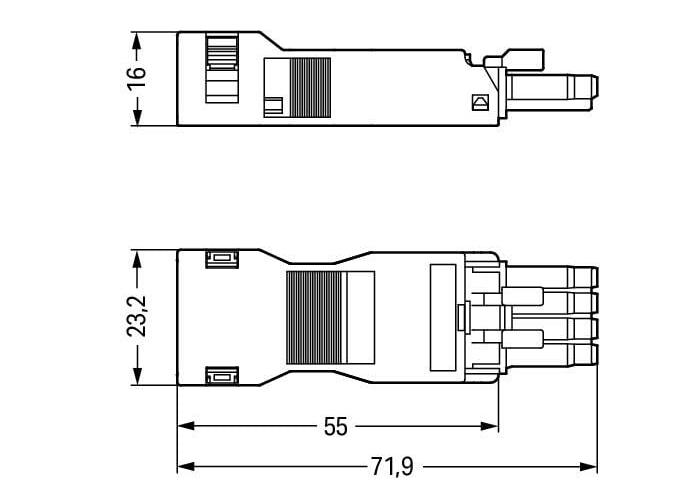

Dimensions:0.63 in H x 0.91 in W x 2.83 in D
Number of Positions:4
Specifications:-35 to 85 degree C Continuous Operating Temperature
Suitable For Use With:General Mains Application
Type:Operating Tool
Actuation type:Operating tool || Push-in
Application:General mains applications
Coding:A
Color:Black
Conductor entry direction to mating direction:0 °
Connection technology:Push-in CAGE CLAMP®
Connector (connection type):For conductor
Contact material:Copper or copper alloy (surface-treated)
Country of origin:DE
Depth:71.9 mm / 2.831 inch
Height:16 mm / 0.63 inch
Insulation material:Polyamide (PA66)
Marking:N ⏚ 2/L 1/L'
Material:Polyamide (PA66)
Nominal cross-section:1.5 mm²
Potential marking:N ⏚ 2/L 1/L'
Protection type:IP40
Rated current:16 A
Solid conductor:0.25 … 1.5 mm² / 22 … 16 AWG
Strain relief:Strain relief housing
Stranded conductor:0.25 … 1 mm² / 22 … 18 AWG
Total number of connection points:4
Weight:10.622 g
Width:23.2 mm / 0.913 inch
Manufacturer Name:WAGO Corporation
UNSPSC:39121409
UPC: 04045454232863
