Part Number # 890-113
SKU # 2324989
Image Disclaimers Message
Brand: Wago
890-113
WAGO 890-113 Wire Connectors
Part Number # 890-113
SKU # 2324989
$4.58 / Each
Typical price:$4.96 / Each
Wago 890-113 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 890-113 |
| SKU #: | 2324989 |
| Connector Type: | Plug |
| Dimensions: | 0.55 in H x 0.7 in W x 2.5 in D |
| Number of Positions: | 3 |
| Specifications: | -35 to 85 degree C Continuous Operating Temperature |
| Suitable For Use With: | General Mains Application |
| Type: | Operating Tool |
| Actuation type: | Operating tool || Push-in |
| Application: | General mains applications |
| Coding: | A |
| Color: | Black |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | Push-in CAGE CLAMP® |
| Connector (connection type): | For conductor |
| Contact material: | Copper or copper alloy (surface-treated) |
| Country of origin: | DE |

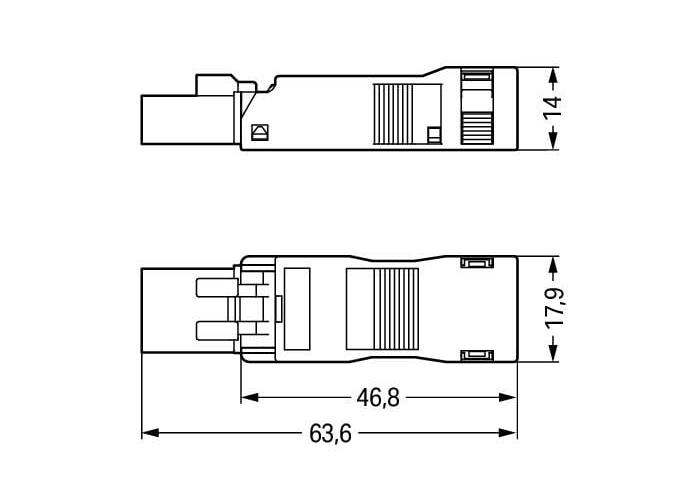

| Depth: | 63.6 mm / 2.504 inch |
| Height: | 14 mm / 0.551 inch |
| Insulation material: | Polyamide (PA66) |
| Marking: | L ⏚ N |
| Material: | Polyamide (PA66) |
| Nominal cross-section: | 1.5 mm² |
| Potential marking: | L ⏚ N |
| Protection type: | IP40 |
| Rated current: | 16 A |
| Solid conductor: | 0.25 … 1.5 mm² / 22 … 16 AWG |
| Strain relief: | Strain relief housing |
| Stranded conductor: | 0.25 … 1 mm² / 22 … 18 AWG |
| Total number of connection points: | 3 |
| Weight: | 8.471 g |
| Width: | 17.9 mm / 0.705 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121409 |
| UPC: | 04045454232900 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4.58 / Each
Typical price:$4.96 / Each
Quantity:
- WAGO, 890-113, Plug with Strain Relief Housing, Operating Tool, 3 Positions, 0.173 in Pitch/Row Spacing, Plug Connector, For Use With: General Mains Application, Specifications: -35 to 85 degree C Continuous Operating Temperature, Polyamide (PA66), Black, 0.55 in H x 0.7 in W x 2.5 in D Dimensions
890-113 Application
For General mains applications890-113 Item Features
- Protection against mismating eliminates errors
- Compact design for conductors with a cross-section up to 1.5 mm^2
- With A coding for a large number of uses
- Flexible installation to save space
- Convenient installation and commissioning
890-113 Standards
IEC/EN 60664-1|RoHS CompliantSKU #2324989Part Number #890-113UNSPSC39121409UPC04045454232900
