890-123

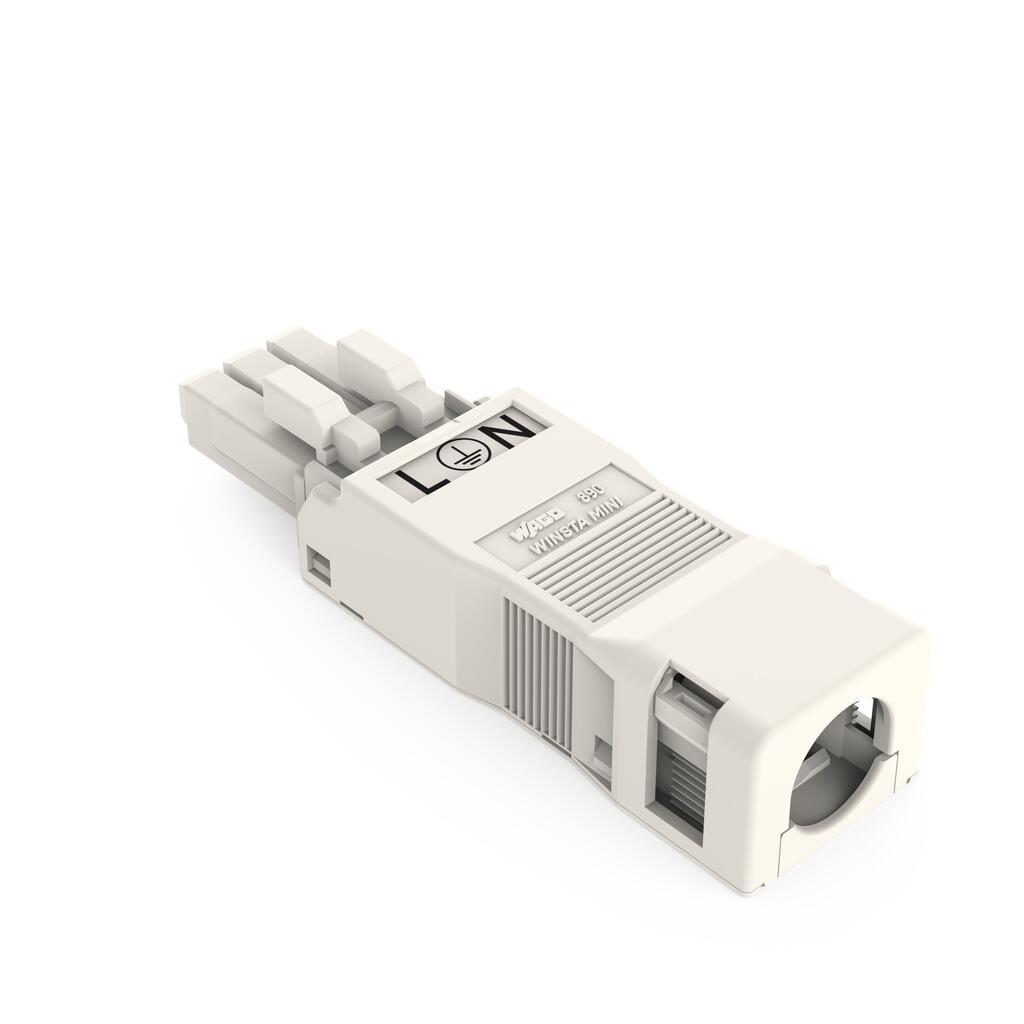

WAGO 890-123 Wire Connectors
Part Number # 890-123
SKU # 2334198
$4.73 / Each
Typical price:$5.12 / Each
Wago 890-123 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 890-123 |
| SKU #: | 2334198 |
| Connector Type: | Socket |
| Dimensions: | 0.55 in H x 0.7 in W x 2.5 in D |
| Number of Positions: | 3 |
| Specifications: | -35 to 85 degree C Continuous Operating Temperature |
| Suitable For Use With: | General Mains Application |
| Type: | Operating Tool |
| Actuation type: | Operating tool || Push-in |
| Application: | General mains applications |
| Coding: | A |
| Color: | White |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | Push-in CAGE CLAMP® |
| Connector (connection type): | For conductor |
| Contact material: | Copper or copper alloy (surface-treated) |
| Country of origin: | DE |
| Depth: | 63.6 mm / 2.504 inch |
| Height: | 14 mm / 0.551 inch |
| Insulation material: | Polyamide (PA66) |
| Marking: | L ⏚ N |
| Material: | Polyamide (PA66) |
| Nominal cross-section: | 1.5 mm² |
| Potential marking: | L ⏚ N |
| Protection type: | IP40 |
| Rated current: | 16 A |
| Solid conductor: | 0.25 … 1.5 mm² / 22 … 16 AWG |
| Strain relief: | Strain relief housing |
| Stranded conductor: | 0.25 … 1 mm² / 22 … 18 AWG |
| Total number of connection points: | 3 |
| Weight: | 6.807 g |
| Width: | 17.9 mm / 0.705 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121409 |
| UPC: | 04045454232962 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4.73 / Each
Typical price:$5.12 / Each
Quantity:
WAGO 890-123 Wire Connectors
Brand: Wago
Part Number: 890-123
Additional Description: WAGO-890-123 SOCKET WITH STRAIN RELIEF HOUSING; 3-POLE, WHITE 8900123
Catalog Description: Socket; with strain relief housing; 3-pole; Cod. A; 1,50 mm²; white
890-123 Application
For General mains applications890-123 Item Features
- Effective protection against mismating
- Ready to install and use immediately
- Fast, secure installation
890-123 Standards
IEC/EN 60664-1|RoHS Compliant|IP40SKU #2334198Part Number #890-123UNSPSC39121409UPC04045454232962
