Brand: Wago

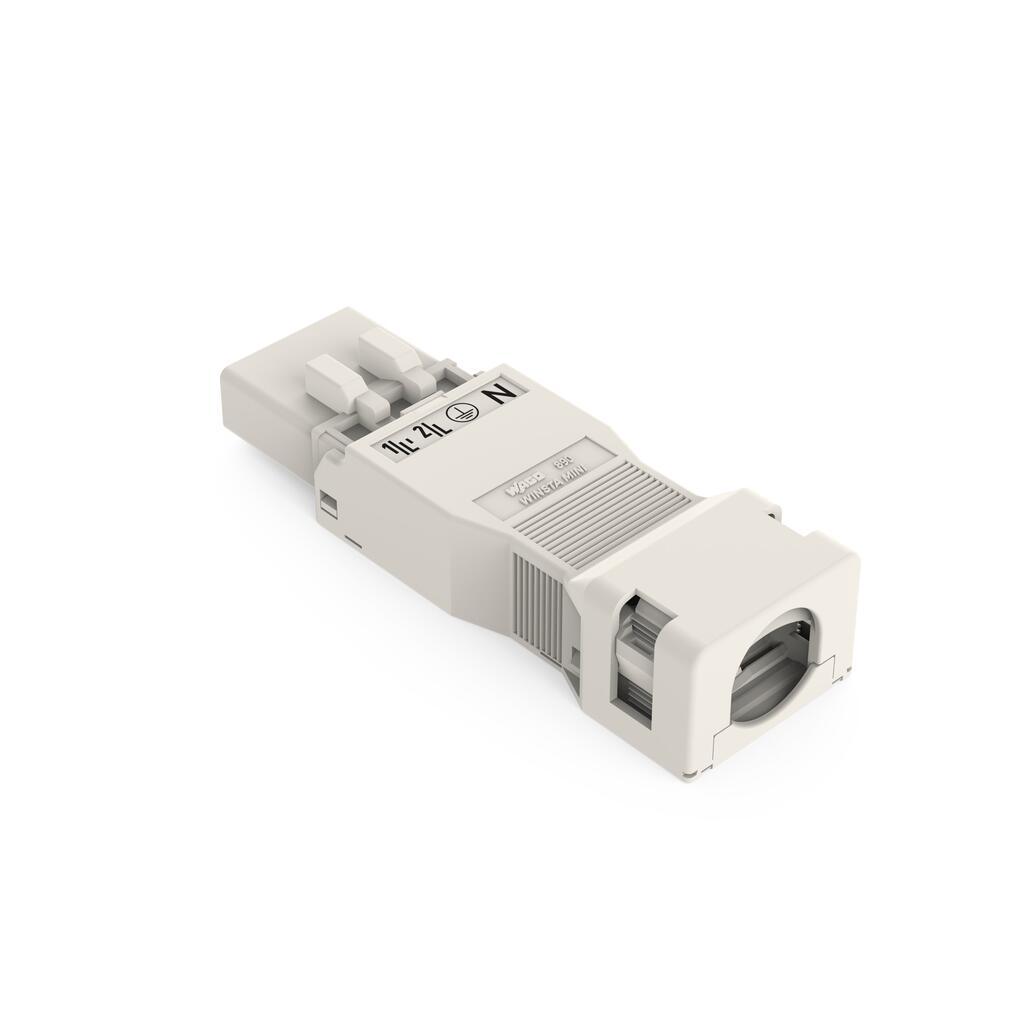

WAGO 890-134 Wire Connectors
Image Disclaimers Message
Brand: Wago
WAGO 890-134 Wire Connectors
Brand: Wago
WAGO 890-134 Wire Connectors
Part #:890-134
SKU #: 2367591
$4.95/EA
Key Features
Part #:890-134
SKU #: 2367591
Brand: Wago
Actuation type: Operating tool || Push-in
Application: General mains applications
Coding: A
Color: White
Conductor entry direction to mating direction: 0 °
$4.95/EA
Specifications
Brand: Wago
Actuation type: Operating tool || Push-in
Application: General mains applications
Coding: A
Color: White
Conductor entry direction to mating direction: 0 °
Connection technology: Push-in CAGE CLAMP®
Connector (connection type): For conductor
Contact material: Copper or copper alloy (surface-treated)
Contact type (pluggable connector): Male connector/plug
Country of origin: DE
Depth: 71.9 mm / 2.831 inch
Height: 16 mm / 0.63 inch
Insulation material: Polyamide (PA66)
Marking: N ⏚ 2/L 1/L'
Nominal cross-section: 1.5 mm²
Potential marking: N ⏚ 2/L 1/L'
Protection type: IP40
Rated current: 16 A
Solid conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
Strain relief: Strain relief housing
Stranded conductor: 0.25 … 1 mm² / 22 … 18 AWG
Total number of connection points: 4
Weight: 10.251 g
Width: 23.2 mm / 0.913 inch
UNSPSC: 39121409
UPC: 04045454233020
WAGO 890-134 Wire Connectors
Additional Description: WAGO-890-134 PLUG WITH STRAIN RELIEF HOUSING 4-POLE, WHITE 8900134
Catalog Description: Plug; with strain relief housing; 4-pole; 1,50 mm²; white
