Part Number # 890-135

SKU # 2367592

Image Disclaimers Message

Brand: Wago

890-135

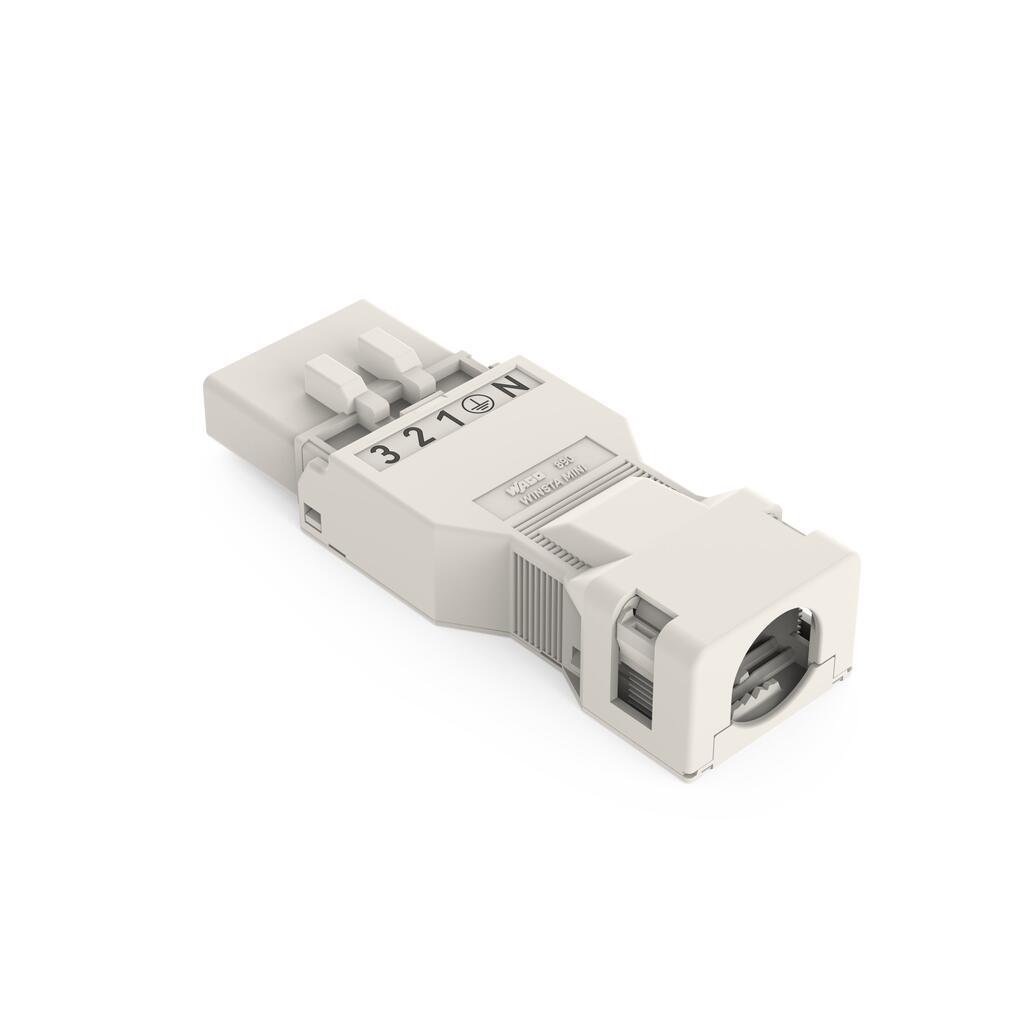

WAGO 890-135 Wire Connectors

Part Number # 890-135

SKU # 2367592

$6.58 / Each
Typical price:$7.13 / Each

Wago 890-135 Key Features

Brand:Wago
Part Number # :890-135
SKU #:2367592
Connector Type:Plug
Dimensions:0.62 in H x 1.05 in W x 2.83 in D
Number of Positions:5
Specifications:-35 to 85 degree C Continuous Operating Temperature
Suitable For Use With:General Mains Application
Type:Operating Tool
Actuation type:Operating tool || Push-in
Application:General mains applications
Coding:A
Color:White
Conductor entry direction to mating direction:0 °
Connection technology:Push-in CAGE CLAMP®
Connector (connection type):For conductor
Contact material:Copper or copper alloy (surface-treated)
Country of origin:DE
Depth:71.9 mm / 2.831 inch
Height:15.8 mm / 0.622 inch
Insulation material:Polyamide (PA66)
Marking:N ⏚ 1 2 3
Material:Polyamide (PA66)
Nominal cross-section:1.5 mm²
Potential marking:N ⏚ 1 2 3
Protection type:IP40
Rated current:13 A
Solid conductor:0.25 … 1.5 mm² / 22 … 16 AWG
Strain relief:Strain relief housing
Stranded conductor:0.25 … 1 mm² / 22 … 18 AWG
Total number of connection points:5
Weight:11.650 g
Width:26.7 mm / 1.051 inch
Manufacturer Name:WAGO Corporation
UNSPSC:39121409
UPC: 04045454233037

Buy Now Pay Later

Get 30 days to pay with Net 30 Terms. Apply Now.

$6.58 / Each
Typical price:$7.13 / Each
Quantity:
