Part Number # 890-213
SKU # 2258177
Image Disclaimers Message
890-213

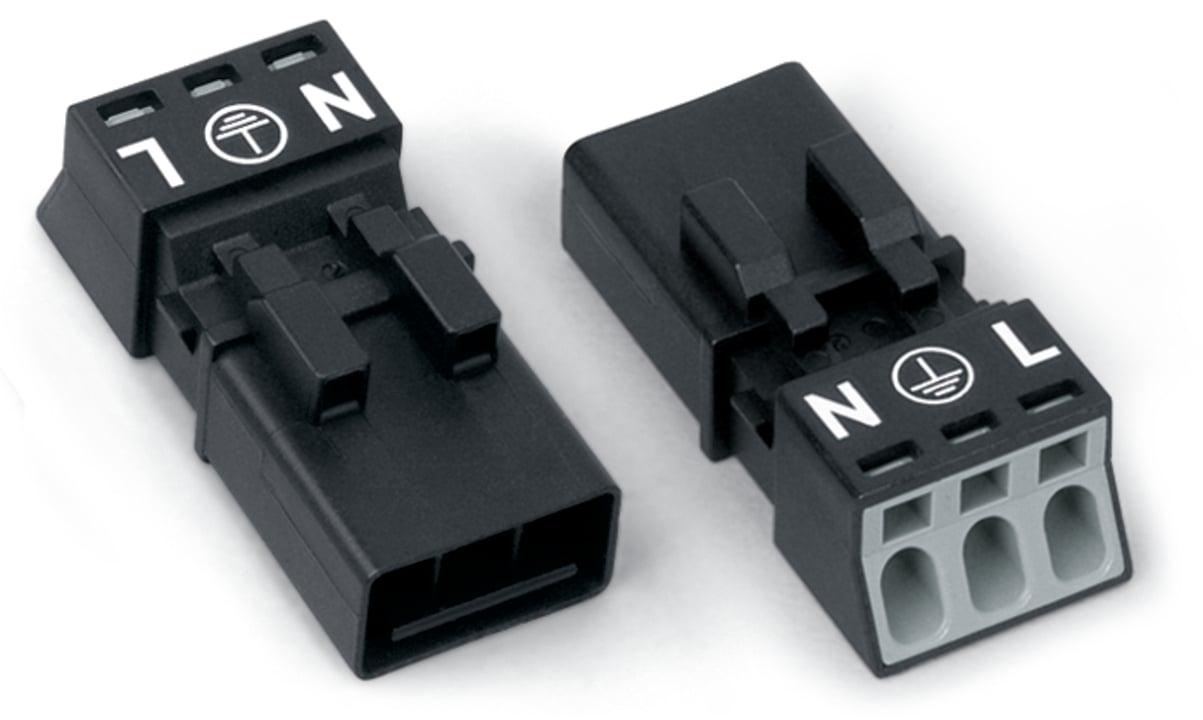

WAGO 890-213 Plug
Part Number # 890-213
SKU # 2258177
$2.58 / Each
Typical price:$2.79 / Each
Wago 890-213 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 890-213 |
| SKU #: | 2258177 |
| Amperage Rating: | 16 A |
| Dimensions: | 0.461 in H x 0.591 in W x 1.343 in D |
| Finish: | Tin Plated |
| Number of Positions: | 3 |
| Series: | 890 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Terminal Type: | Push-In |
| Wire Size: | 22 to 16 AWG |
| Actuation type: | Operating tool || Push-in |
| Application: | General mains applications |
| Coding: | A |
| Color: | Black |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | Push-in CAGE CLAMP® |
| Connector (connection type): | For conductor |
| Contact material: | Copper or copper alloy (surface-treated) |
| Country of origin: | PL |
| Depth: | 34.1 mm / 1.343 inch |
| Height: | 11.7 mm / 0.461 inch |
| Insulation material: | Polyamide (PA66) |
| Marking: | L ⏚ N |
| Material: | Copper/Polyamide 6.6 |
| Mounting type: | Free Hanging In-Line |
| Nominal cross-section: | 1.5 mm² |
| Potential marking: | L ⏚ N |
| Protection type: | IP20 |
| Rated current: | 16 A |
| Solid conductor: | 0.25 … 1.5 mm² / 22 … 16 AWG |
| Stranded conductor: | 0.25 … 1 mm² / 22 … 18 AWG |
| Total number of connection points: | 3 |
| Weight: | 3.585 g |
| Width: | 15 mm / 0.591 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121409 |
| UPC: | 04055143548533 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2.58 / Each
Typical price:$2.79 / Each
Quantity:
WAGO 890-213 Plug
Brand: Wago
Part Number: 890-213
Additional Description: WAGO-890-213 PLUG 3-POLE; BLACK 60321927
Catalog Description: Plug; 3-pole; Cod. A; 1,50 mm²; black
890-213 Application
For General mains Applications890-213 Item Features
- Protection against mismating eliminates errors
- Easy tool-free operation, a wide range of coding options
- Suitable for any application
- Custom-engineered solutions
- Fast and secure installation
890-213 Standards
RoHS Compliant|UL94|IP20|IP40SKU #2258177Part Number #890-213UNSPSC39121409UPC04055143548533
