Part Number # 890-243
SKU # 2353403
Image Disclaimers Message
890-243

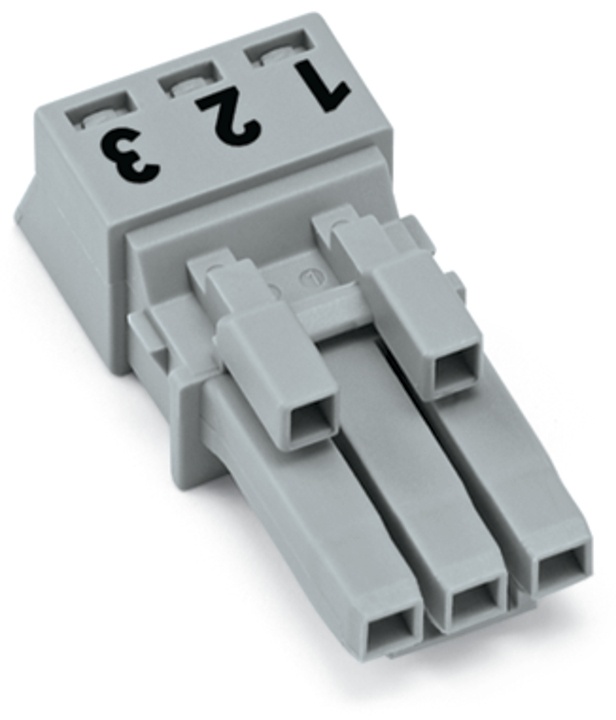

WAGO 890-243 Wire Connectors
Part Number # 890-243
SKU # 2353403
$3.29 / Each
Typical price:$3.56 / Each
Wago 890-243 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 890-243 |
| SKU #: | 2353403 |
| Dimensions: | 0.461 in H x 0.591 in W x 1.343 in D |
| Type: | Operating Tool |
| Wire Size: | 22 to 16 AWG |
| Actuation type: | Operating tool || Push-in |
| Coding: | B |
| Color: | Gray |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | Push-in CAGE CLAMP® |
| Connector (connection type): | For conductor |
| Contact material: | Copper or copper alloy (surface-treated) |
| Country of origin: | PL |
| Depth: | 34.1 mm / 1.343 inch |
| Height: | 11.7 mm / 0.461 inch |
| Insulation material: | Polyamide (PA66) |
| Marking: | 1 2 3 |
| Material: | Polyamide (PA66) |
| Nominal cross-section: | 1.5 mm² |
| Potential marking: | 1 2 3 |
| Protection type: | IP20 |
| Rated current: | 16 A |
| Solid conductor: | 0.25 … 1.5 mm² / 22 … 16 AWG |
| Stranded conductor: | 0.25 … 1 mm² / 22 … 18 AWG |
| Total number of connection points: | 3 |
| Weight: | 3.644 g |
| Width: | 15 mm / 0.591 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121409 |
| UPC: | 04055143499910 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3.29 / Each
Typical price:$3.56 / Each
Quantity:
WAGO 890-243 Wire Connectors
Brand: Wago
Part Number: 890-243
Additional Description: WAGO-890-243 SOCKET 3-POLE, GRAY
Catalog Description: Socket; 3-pole; Cod. B; 1,50 mm²; gray
890-243 Item Features
- Protection against mismating eliminates errors
- Flexible installation to save space
- Rapid, structured electrical installation
890-243 Standards
IEC/EN 60664-1|RoHS Compliant|IP40SKU #2353403Part Number #890-243UNSPSC39121409UPC04055143499910
