Brand: Wago

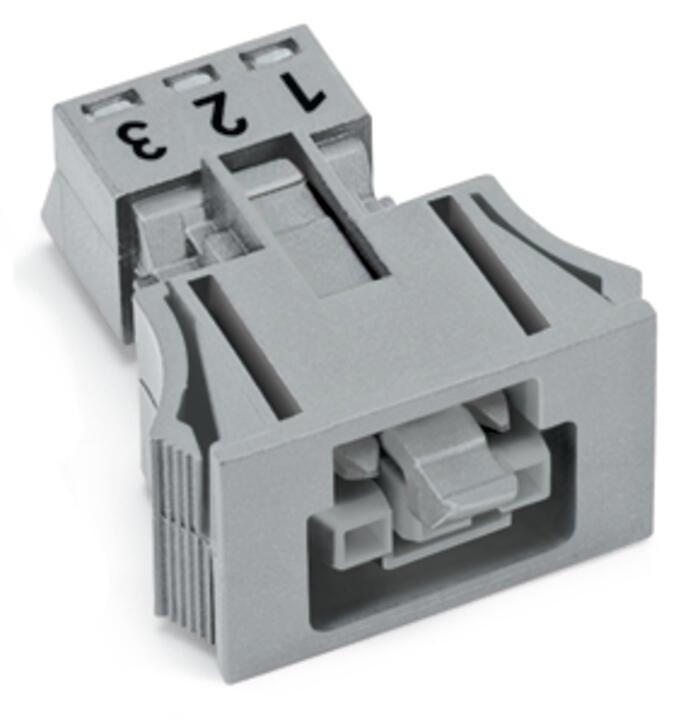

WAGO 890-743 WINSTA through-panel socket (female)
Image Disclaimers Message
Brand: Wago
WAGO 890-743 WINSTA through-panel socket (female)
Brand: Wago
WAGO 890-743 WINSTA through-panel socket (female)
Part #:890-743
SKU #: 2361344
$153.00/50EA
Key Features
Part #:890-743
SKU #: 2361344
Brand: Wago
Actuation type: Operating tool || Push-in
Coding: B
Color: Gray
Conductor entry direction to mating direction: 0 °
Connection technology: Push-in CAGE CLAMP®
$153.00/50EA
Specifications
Brand: Wago
Actuation type: Operating tool || Push-in
Coding: B
Color: Gray
Conductor entry direction to mating direction: 0 °
Connection technology: Push-in CAGE CLAMP®
Connector (connection type): For conductor
Contact material: Copper or copper alloy (surface-treated)
Contact type (pluggable connector): Female connector/socket
Country of origin: PL
Depth: 39.85 mm / 1.569 inch
Height: 16 mm / 0.63 inch
Insulation material: Polyamide (PA66)
Marking: 1 2 3
Mounting type: Snap-in
Nominal cross-section: 1.5 mm²
Potential marking: 1 2 3
Protection type: IP40
Rated current: 16 A
Solid conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
Stranded conductor: 0.25 … 1 mm² / 22 … 18 AWG
Total number of connection points: 3
Weight: 6.000 g
Width: 24.2 mm / 0.953 inch
UNSPSC: 39121409
UPC: 04055143427838
WAGO 890-743 WINSTA through-panel socket (female)
Additional Description: WAGO-890-743 SOCKET 08900743
Catalog Description: Snap-in socket; 3-pole; Cod. B; 1,50 mm²; gray
