Part Number # 890-753

SKU # 2353401

Image Disclaimers Message

Brand: Wago

890-753

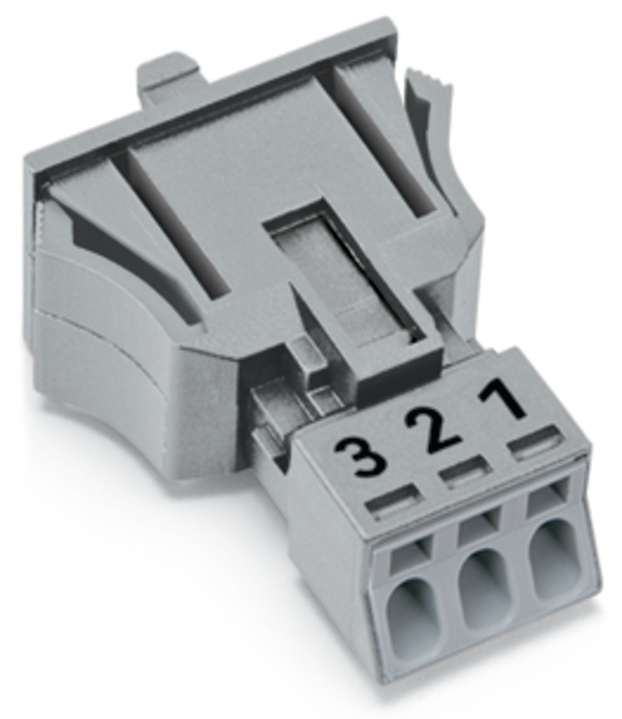

WAGO 890-753 WINSTA through-panel plug (male)

Part Number # 890-753

SKU # 2353401

$157.39 / 50Each
Typical price:$170.50 / Each
($3.15 / 1)

Wago 890-753 Key Features

Brand:Wago
Part Number # :890-753
SKU #:2353401
Amperage Rating:16 A
Dimensions:0.63 in H x 0.953 in W x 1.569 in D
Number of Positions:3
Temperature Rating (Degrees F):-5 to 40 deg C
Type:Operating Tool
Actuation type:Operating tool || Push-in
Coding:B
Color:Gray
Conductor entry direction to mating direction:0 °
Connection technology:Push-in CAGE CLAMP®
Connector (connection type):For conductor
Contact material:Copper or copper alloy (surface-treated)
Country of origin:PL
Depth:39.85 mm / 1.569 inch
Height:16 mm / 0.63 inch
Insulation material:Polyamide (PA66)
Marking:1 2 3
Material:Polyamide
Mounting type:Flange/Snap-In, Snap-in
Nominal cross-section:1.5 mm²
Potential marking:1 2 3
Protection type:IP20
Rated current:16 A
Solid conductor:0.25 … 1.5 mm² / 22 … 16 AWG
Stranded conductor:0.25 … 1 mm² / 22 … 18 AWG
Total number of connection points:3
Weight:5.485 g
Width:24.2 mm / 0.953 inch
Manufacturer Name:WAGO Corporation
UNSPSC:39121409
UPC: 04055143427852
