Part Number # 2002-1971/401-000
SKU # 2456848
2002-1971/401-000
Wago 2002-1971/401-000
Part Number # 2002-1971/401-000
SKU # 2456848
Wago 2002-1971/401-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-1971/401-000 |
| SKU #: | 2456848 |
| Amperage Rating: | 16 A |

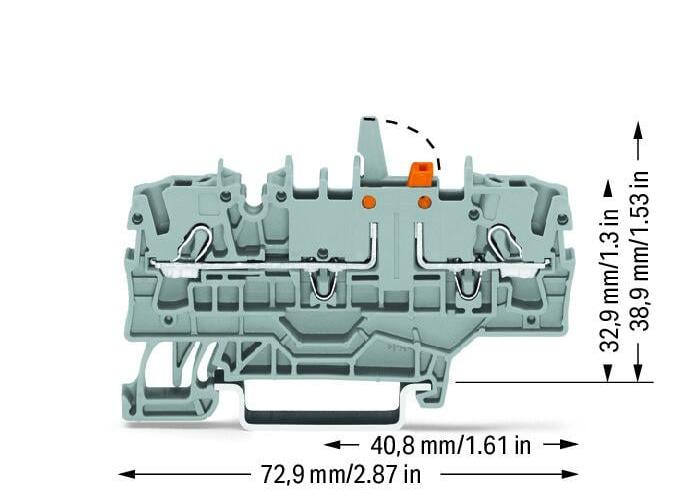

| Dimensions: | 2.87 in H x 0.205 in W x 1.295 in D |
| Number of Poles: | 2 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 22 to 12 AWG |
| Connection type: | Push-In |
| Material: | Polyamide |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143302760 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Wago 2002-1971/401-000
Brand: Wago
Part Number: 2002-1971/401-000
Additional Description: WAGO-2002-1971/401-000 2-CONDUCTOR DISCONNECT/TEST TERMINAL BLOCK; WITH MECHANICAL INTERLOCK; WITH ADDITIONAL JUMPER POSITION; ORANGE DISCONNECT LINK; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; PUSH-IN CAGE CLAMP ; 2,50 MM ; GRAY 60262569
Catalog Description: 2-conductor disconnect/test terminal block; with mechanical interlock; with additional jumper position; orange disconnect link; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray
2002-1971/401-000 Item Features
- Solid conductor 22 to 12 AWG, Solid conductor; push-in termination 18 to 12 AWG, Fine-stranded conductor 22 to 12 AWG, Fine-stranded conductor; with insulated ferrule 22 to 14 AWG, Fine-stranded conductor; with ferrule; push-in termination 18 to 14 AWG
2002-1971/401-000 Standards
CSA 22.2 No 158|ATEX: KIWA 17 ATEX 0030 U / IECEx: KIWA 17.0014U (Ex ec IIC Gc)|RoHS CompliantSKU #2456848Part Number #2002-1971/401-000UNSPSC39121410UPC04055143302760
Image provided may only be a representation of final product and may include optional equipment
