Part Number # 2002-2207/099-000
SKU # 2457840
Image Disclaimers Message
2002-2207/099-000
Wago 2002-2207/099-000
Part Number # 2002-2207/099-000
SKU # 2457840
Wago 2002-2207/099-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-2207/099-000 |
| SKU #: | 2457840 |
| Dimensions: | 2.744 in H x 0.244 in W x 2.035 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 22 to 12 AWG |
| Connection type: | Push-In |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04050821266419 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Wago 2002-2207/099-000
Brand: Wago
Part Number: 2002-2207/099-000

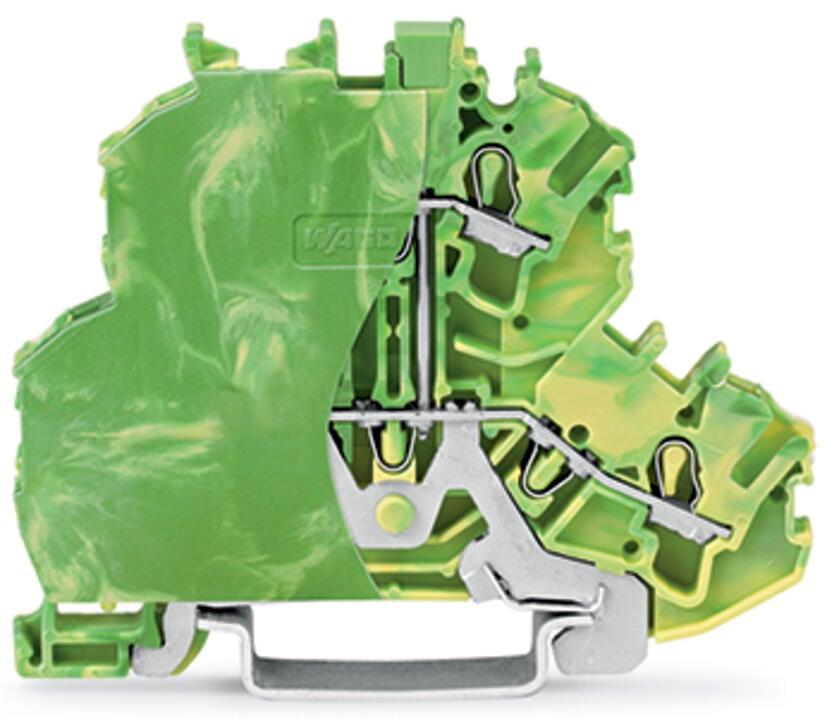

Additional Description: WAGO-2002-2207/099-000 DOUBLE-DECK TERMINAL BLOCK; 4-CONDUCTOR GROUND TERMINAL BLOCK; PE; WITH END PLATE; WITHOUT MARKER CARRIER; INTERNAL COMMONING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM²; PUSH-IN CAGE CLAMP®; 2,50 MM²; GREEN-YELLOW 51243094
Catalog Description: Double-deck terminal block; 4-conductor ground terminal block; with end plate; 2.5 mm²; PE; without marker carrier; internal commoning; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; green-yellow
2002-2207/099-000 Standards
ATEX: PTB 03 ATEX 1162 U / IECEx: PTB 03.0004U (Ex eb IIC Gb)|RoHS CompliantSKU #2457840Part Number #2002-2207/099-000UNSPSC39121410UPC04050821266419
