Part Number # 2091-1130
SKU # 2456505

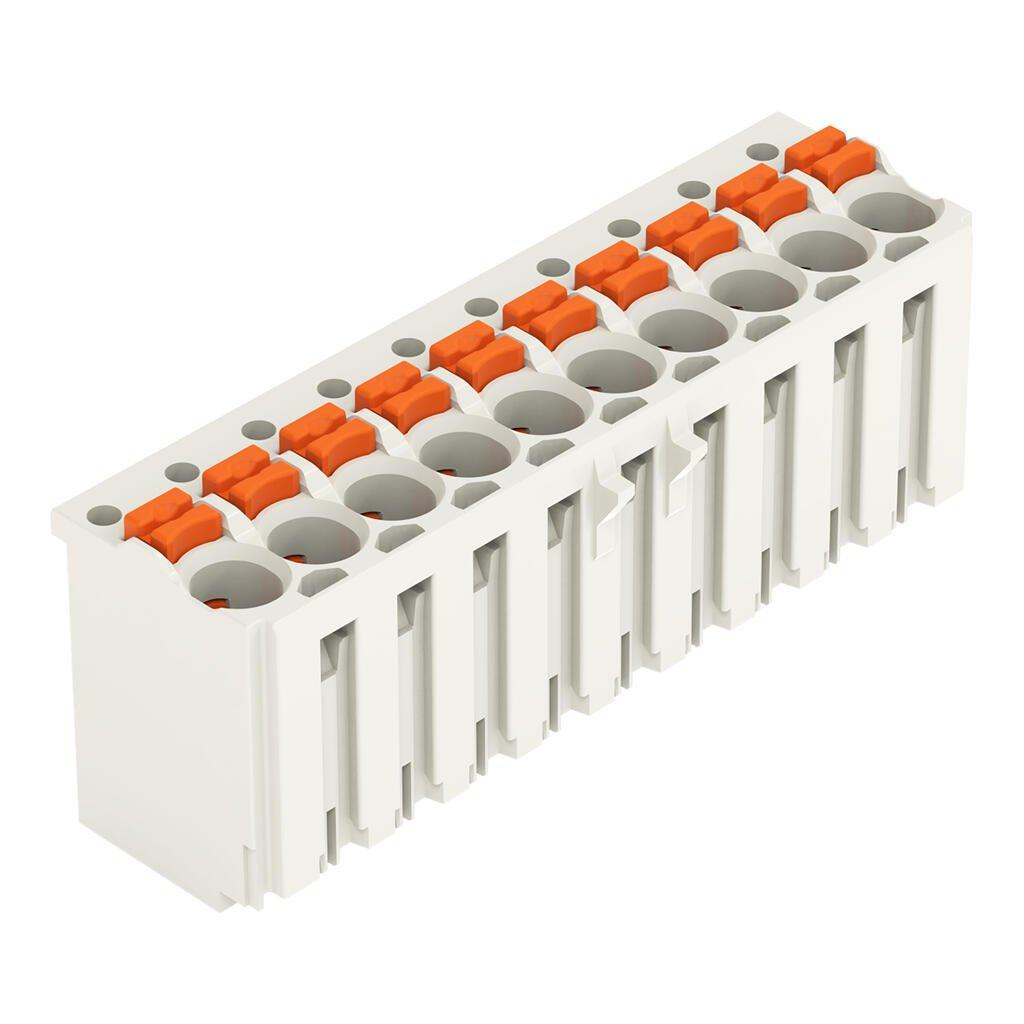

Image provided may only be a representation of
final product and may include optional equipment
2091-1130
Wago 2091-1130
Part Number # 2091-1130
SKU # 2456505
$6.42 / Each
Typical price:$6.96 / Each
Wago 2091-1130 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2091-1130 |
| SKU #: | 2456505 |
| Amperage Rating: | 10 A |
| Dimensions: | 0.551 in H x 1.378 in W x 0.449 in D |
| Number of Poles: | 10 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Push Button |
| Wire Size: | 24 to 14 AWG |
| Connection type: | Push-In |
| Material: | Polyphthalamide |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04050821160816 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6.42 / Each
Typical price:$6.96 / Each
Quantity:
Wago 2091-1130
Brand: Wago
Part Number: 2091-1130
Additional Description: WAGO-2091-1130 1-CONDUCTOR FEMALE PLUG; 1.5 MM ; PIN SPACING 3.5 MM; 10-POLE; 1,50 MM ; LIGHT GRAY 20911130
Catalog Description: 1-conductor female connector; push-button; Push-in CAGE CLAMP®; 1.5 mm²; Pin spacing 3.5 mm; 10-pole; 1,50 mm²; light gray
2091-1130 Item Features
- Universal connection of all conductor types
- Simple, push-in termination of solid and ferruled conductors
- Easy-to-use design does not require special tools
- Ability to wire while mated or unmated
- Testing parallel to conductor entry - tip contact
- Also available with gripping plates
- Integrated locking latches prevent accidental disconnection
2091-1130 Standards
UL 1059|IEC/EN 60664-1|RoHS CompliantSKU #2456505Part Number #2091-1130UNSPSC39121421UPC04050821160816
