Part Number # 2091-1132
SKU # 2456504
Image Disclaimers Message
2091-1132

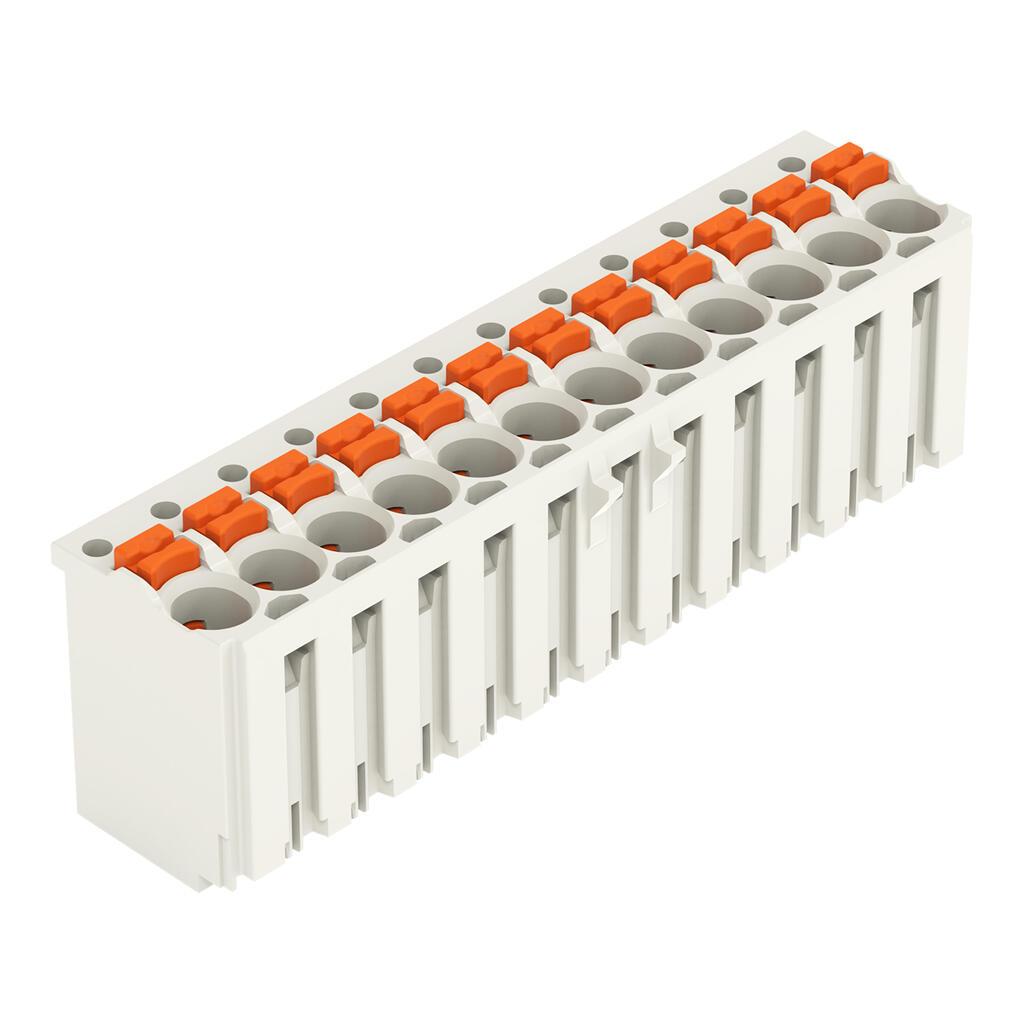

Wago 2091-1132
Part Number # 2091-1132
SKU # 2456504
$7.72 / Each
Typical price:$8.36 / Each
Wago 2091-1132 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2091-1132 |
| SKU #: | 2456504 |
| Amperage Rating: | 10 A |
| Dimensions: | 0.551 in H x 1.654 in W x 0.449 in D |
| Number of Poles: | 12 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Push Button |
| Wire Size: | 24 to 14 AWG |
| Color: | Light gray |
| Connection type: | Push-In |
| Material: | Polyphthalamide |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04050821160823 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$7.72 / Each
Typical price:$8.36 / Each
Quantity:
- WAGO, 2091-1132, 1-Conductor Female Connector, Push Button, 320 V, 10 A, 12 Pole, 24 to 14 AWG Wire, 0.31 to 0.35 in Wire Strip Length, Push-In Connection, -35 to 60 deg C, Polyphthalamide, Light Gray, 0.551 in H x 1.654 in W x 0.449 in D Dimensions
2091-1132 Item Features
- Universal connection of all conductor types
- Simple, push-in termination of solid and ferruled conductors
- Easy-to-use design does not require special tools
- Ability to wire while mated or unmated
- Testing parallel to conductor entry - tip contact
- Also available with gripping plates
- Integrated locking latches prevent accidental disconnection
2091-1132 Standards
UL 1059|IEC/EN 60664-1|RoHS CompliantSKU #2456504Part Number #2091-1132UNSPSC39121421UPC04050821160823
