Part Number # 2092-1126
SKU # 2456565
Image provided may only be a representation of
final product and may include optional equipment
2092-1126
Wago 2092-1126
Part Number # 2092-1126
SKU # 2456565
$4.04 / Each
Typical price:$4.38 / Each
Wago 2092-1126 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2092-1126 |
| SKU #: | 2456565 |
| Amperage Rating: | 16 A |
| Dimensions: | 0.638 in H x 1.181 in W x 0.528 in D |
| Number of Poles: | 6 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Push Button |
| Wire Size: | 24 to 12 AWG |
| Connection type: | Push-In |
| Material: | Polyphthalamide |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04050821163510 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4.04 / Each
Typical price:$4.38 / Each
Quantity:
Wago 2092-1126
Brand: Wago
Part Number: 2092-1126
Additional Description: WAGO-2092-1126 1-CONDUCTOR FEMALE PLUG; 2.5 MM ; PIN SPACING 5 MM; 6-POLE; 2,50 MM ; LIGHT GRAY 20921126

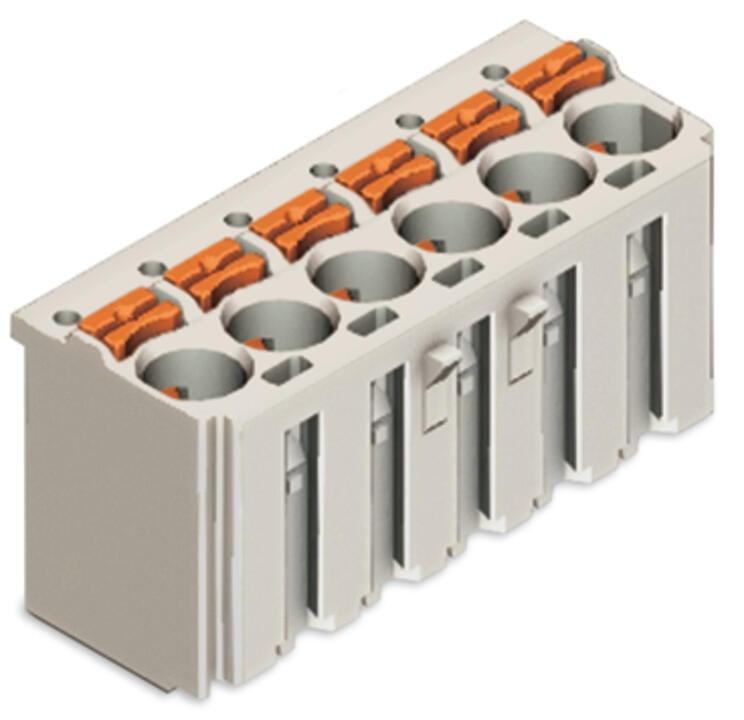

Catalog Description: 1-conductor female connector; push-button; Push-in CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 6-pole; 2,50 mm²; light gray
2092-1126 Item Features
- Universal connection of all conductor types
- Simple, push-in termination of solid and ferruled conductors
- Easy-to-use design does not require special tools
- Ability to wire while mated or unmated
- Testing parallel to conductor entry - tip contact
- Also available with gripping plates
- Integrated locking latches prevent accidental disconnection
2092-1126 Standards
UL 1059|IEC/EN 60664-1|RoHS CompliantSKU #2456565Part Number #2092-1126UNSPSC39121421UPC04050821163510
