Part Number # 2106-1304
SKU # 2439106
2106-1304
Wago 2106-1304
Part Number # 2106-1304
SKU # 2439106
Wago 2106-1304 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2106-1304 |
| SKU #: | 2439106 |
| Amperage Rating: | 41 A |

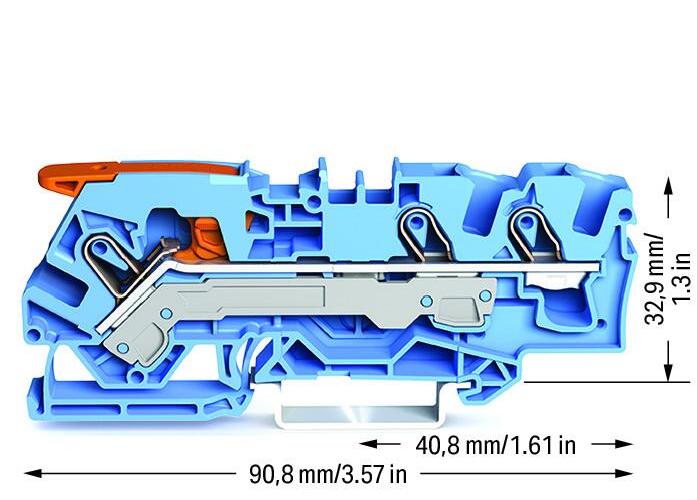

| Dimensions: | 3.575 in H x 0.295 in W x 1.555 in D |
| Number of Poles: | 1 |
| Type: | Push-In |
| Wire Size: | 20 to 8 AWG |
| Connection type: | Clamp |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143742061 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Wago 2106-1304
Brand: Wago
Part Number: 2106-1304
Additional Description: WAGO-2106-1304 3-CONDUCTOR THROUGH TERMINAL BLOCK; WITH LEVER AND PUSH-IN CAGE CLAMP; 6 MM; WITH TEST PORT; SUITABLE FOR EX I APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP; 6,00 MM; BLUE 60367562
Catalog Description: 3-conductor through terminal block; with lever and Push-in CAGE CLAMP®; 6 mm²; with test port; suitable for Ex i applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 6,00 mm²; blue
2106-1304 Application
Suitable for Ex i applications2106-1304 Standards
CSA 22.2 No 158|ATEX: PTB 18 ATEX 1011 U / IECEx: PTB 18.0018U (Ex eb IIC Gb)|RoHS CompliantSKU #2439106Part Number #2106-1304UNSPSC39121410UPC04055143742061
Image provided may only be a representation of final product and may include optional equipment
