Part Number # 2116-5204
SKU # 2458020
2116-5204
Wago 2116-5204
Part Number # 2116-5204
SKU # 2458020
Wago 2116-5204 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2116-5204 |
| SKU #: | 2458020 |
| Amperage Rating: | 76 A |
| Dimensions: | 3.602 in H x 0.472 in W x 1.78 in D |
| Number of Poles: | 1 |
| Type: | Push-In |
| Wire Size: | 20 to 6 AWG |
| Connection type: | Clamp |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143754484 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Wago 2116-5204
Brand: Wago
Part Number: 2116-5204
Additional Description: WAGO-2116-5204 2-CONDUCTOR THROUGH TERMINAL BLOCK; WITH LEVER AND PUSH-BUTTON; 16 MM ; WITH TEST PORT; SUITABLE FOR EX I APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 16,00 MM ; BLUE 60370800
Catalog Description: 2-conductor through terminal block; with lever and push-button; 16 mm²; with test port; suitable for Ex i applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 16,00 mm²; blue
2116-5204 Application
Suitable for Ex i applications2116-5204 Standards
CSA 22.2 No 158|ATEX: PTB 18 ATEX 1012 U / IECEx: PTB 18.0019U (Ex eb IIC Gb)|RoHS CompliantSKU #2458020Part Number #2116-5204UNSPSC39121410UPC04055143754484

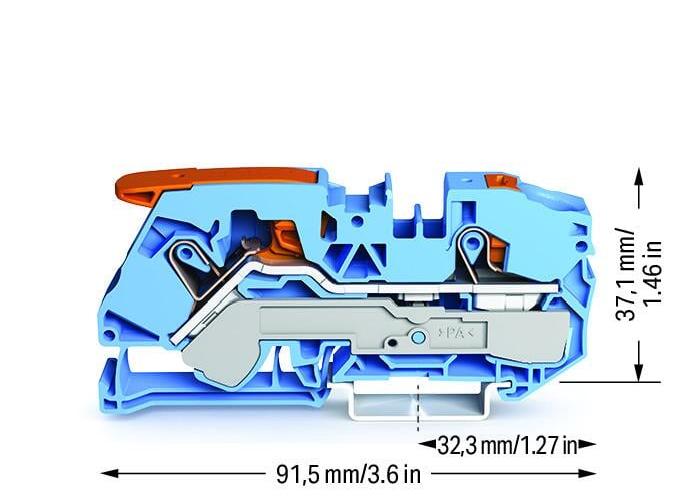

Image provided may only be a representation of final product and may include optional equipment
