Part Number # 2202-2709
SKU # 2445347
2202-2709
Wago 2202-2709
Part Number # 2202-2709
SKU # 2445347
Wago 2202-2709 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2202-2709 |
| SKU #: | 2445347 |
| Amperage Rating: | 24 A |

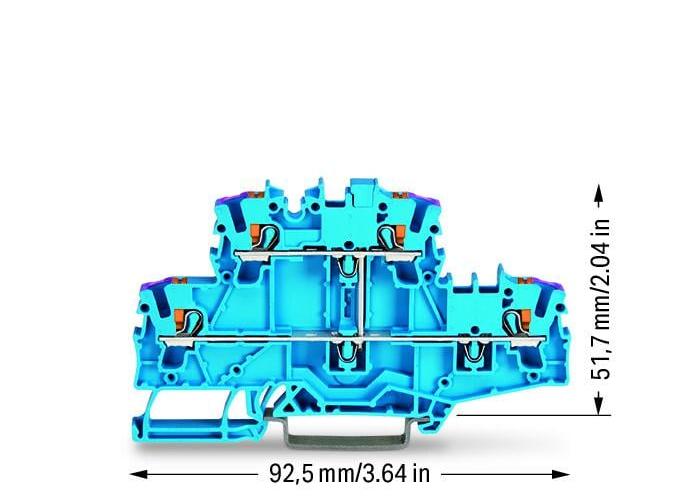

| Dimensions: | 3.642 in H x 0.205 in W x 2.035 in D |
| Number of Poles: | 2 |
| Type: | Operating Tool |
| Wire Size: | 22 to 12 AWG |
| Connection type: | Clamp |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143844642 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Wago 2202-2709
Brand: Wago
Part Number: 2202-2709
Additional Description: WAGO-2202-2709 DOUBLE-DECK TERMINAL BLOCK; WITH PUSH-BUTTON; 4-CONDUCTOR THROUGH TERMINAL BLOCK; N; WITHOUT MARKER CARRIER; FOR EX E II AND EX I APPLICATIONS; INTERNAL COMMONING; CONDUCTOR ENTRY WITH VIOLET MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; PUSH-IN CAGE CLAMP ; 2,50 MM ; BLUE 60394832
Catalog Description: Double-deck terminal block; with push-button; 4-conductor through terminal block; N; without marker carrier; for Ex e II and Ex i applications; internal commoning; conductor entry with violet marking; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; blue
2202-2709 Standards
CSA 22.2 No 158|ATEX: PTB 18 ATEX 1005 U / IECEx: PTB 18.0012U (Ex eb IIC Gb)|RoHS CompliantSKU #2445347Part Number #2202-2709UNSPSC39121410UPC04055143844642
Image provided may only be a representation of final product and may include optional equipment
