Part Number # 231-2704/026-000
SKU # 2452384
Image Disclaimers Message
231-2704/026-000
Wago 231-2704/026-000
Part Number # 231-2704/026-000
SKU # 2452384
$6.68 / Each
Typical price:$7.24 / Each
Wago 231-2704/026-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 231-2704/026-000 |
| SKU #: | 2452384 |
| Amperage Rating: | 16 A |
| Dimensions: | 0.819 in H x 1.092 in W x 1.041 in D |
| Number of Poles: | 4 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Operating Tool |
| Wire Size: | 24 to 12 AWG |
| Color: | Orange |
| Connection type: | Push-In |
| Material: | Polyamide |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04044918565387 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6.68 / Each
Typical price:$7.24 / Each
Quantity:

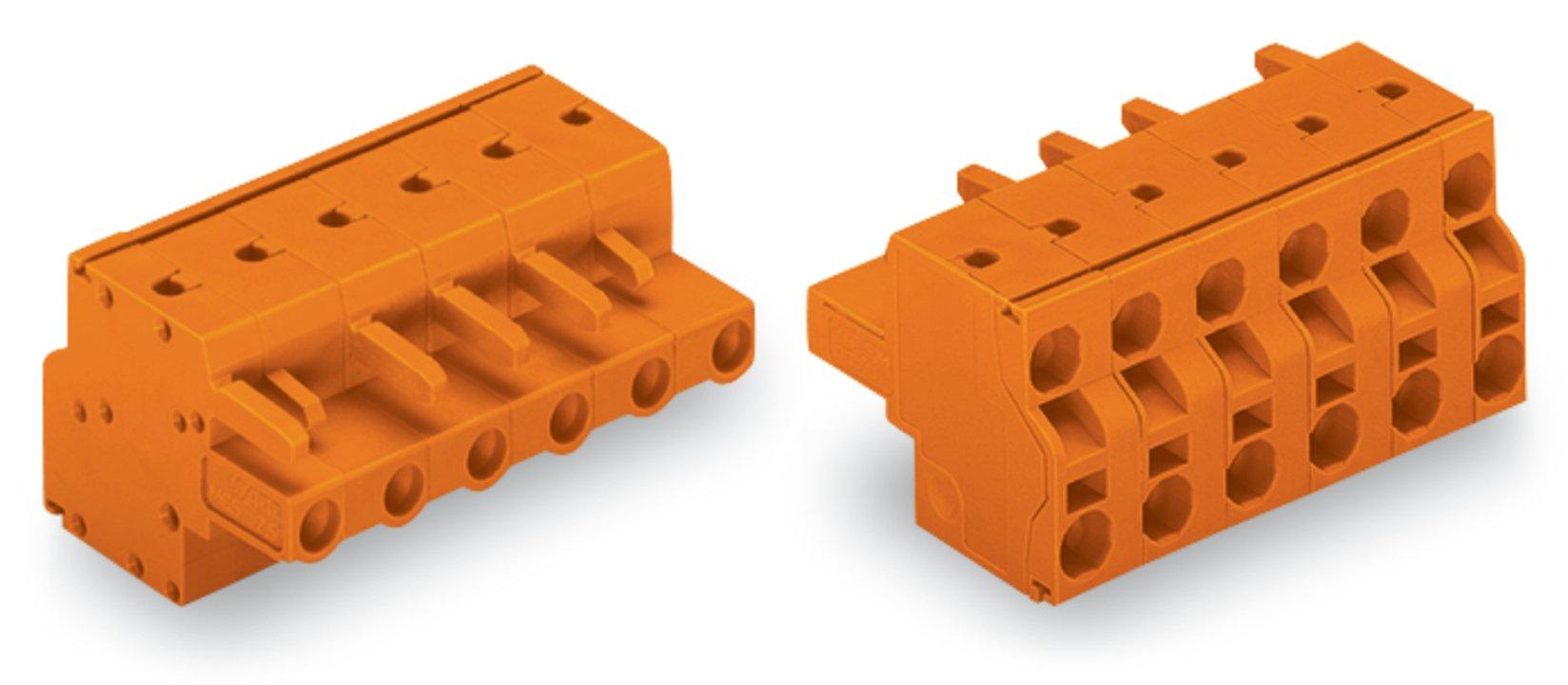

- WAGO, 231-2704/026-000, 2-Conductor Female Connector, Operating Tool, 1 kV, 16 A, 4 Pole, 24 to 12 AWG Wire, 0.35 to 0.39 in Wire Strip Length, Push-In Connection, -35 to 60 deg C, Polyamide, Orange, 0.819 in H x 1.092 in W x 1.041 in D Dimensions
231-2704/026-000 Item Features
- Universal connection for all conductor types
- Two conductor entries per pole
- Bus connection is retained, even when unmated
- Push-in termination of solid and ferruled conductors
- With coding fingers
231-2704/026-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2452384Part Number #231-2704/026-000UNSPSC39121421UPC04044918565387
