Part Number # 232-546/007-000
SKU # 2441567
Image Disclaimers Message
232-546/007-000
Wago 232-546/007-000
Part Number # 232-546/007-000
SKU # 2441567
$12.72 / Each
Typical price:$13.78 / Each
Wago 232-546/007-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 232-546/007-000 |
| SKU #: | 2441567 |
| Amperage Rating: | 12 A |
| Dimensions: | 25.9 mm H x 3.326 in W x 1.673 in D |
| Number of Positions: | 16 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | 6-Pole |
| Color: | Orange |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04045454340070 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$12.72 / Each
Typical price:$13.78 / Each
Quantity:

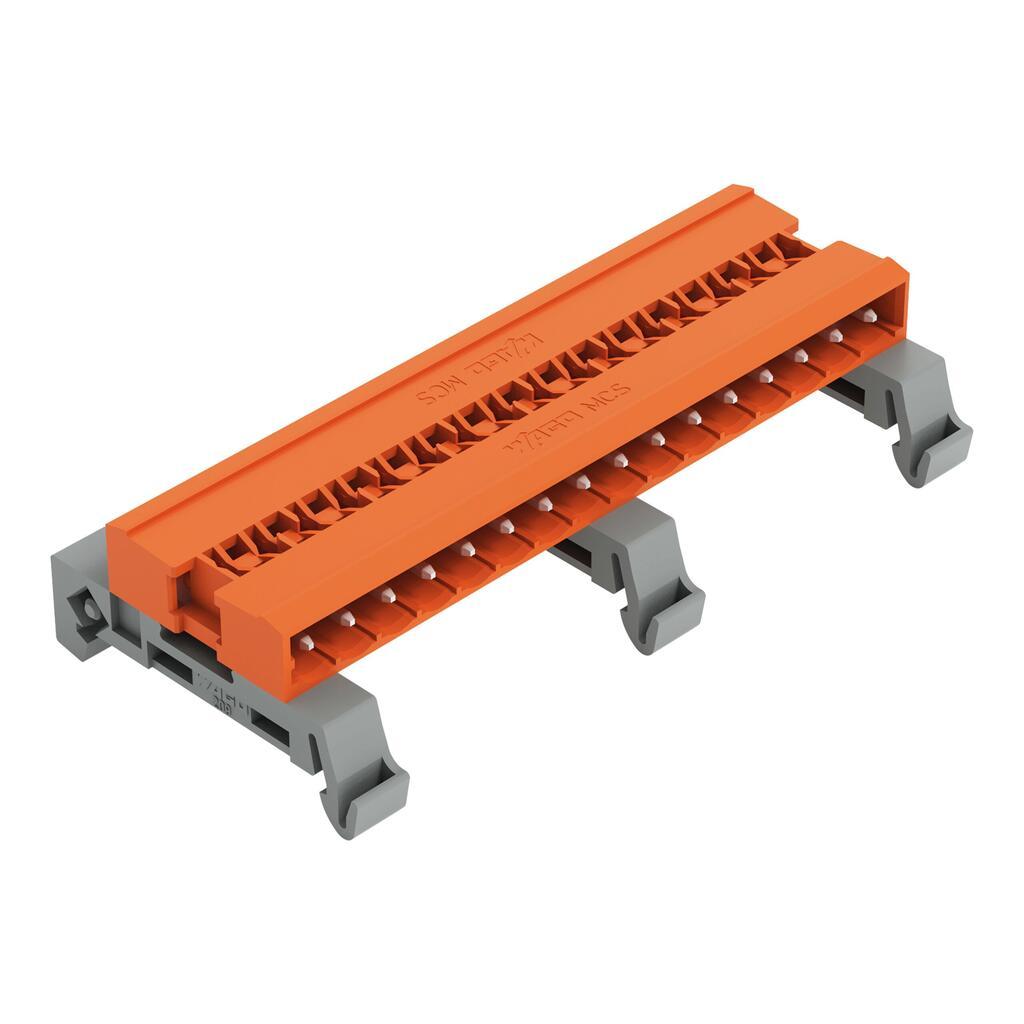

- WAGO, 232-546/007-000, Double Pin Header, 6-Pole, 630 V, 12 A, 16 Positions, 0.2 in Pitch/Row Spacing, 35 mm DIN Rail Mounting, -35 to 60 deg C, Polyamide, Orange, 25.9 mm H x 3.326 in W x 1.673 in D Dimensions
232-546/007-000 Item Features
- Allow MCS Female Connectors fitted with wire harness or cable assembly to be plugged together
- Adapter for DIN-35 rail mounting
- Coding via coding keys on both sides
232-546/007-000 Standards
CSA|IEC/EN 60664-1|DIN 35|RoHS CompliantSKU #2441567Part Number #232-546/007-000UNSPSC39121421UPC04045454340070
