Part Number # 2606-3103/020-000
SKU # 2461140
2606-3103/020-000
Wago 2606-3103/020-000
Part Number # 2606-3103/020-000
SKU # 2461140
$5.38 / Each
Typical price:$5.83 / Each
Wago 2606-3103/020-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2606-3103/020-000 |
| SKU #: | 2461140 |

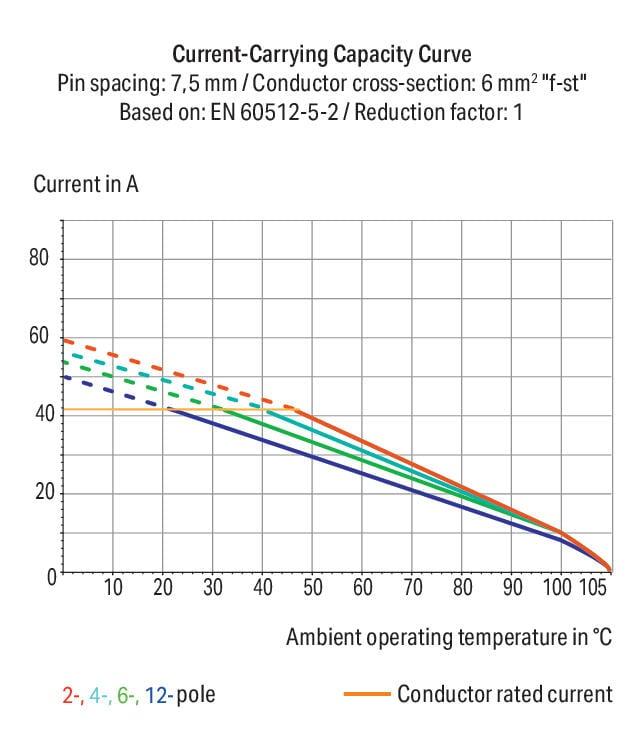

| Amperage Rating: | 41 A |
| Dimensions: | 1.22 in H x 0.998 in W x 0.945 in D |
| Number of Poles: | 3 |
| Spacing: | 0.295 in |
| Type: | Lever |
| Wire Size: | 24 to 8 AWG |
| Connection type: | Push-In |
| Material: | Polyamide |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04055143586610 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$5.38 / Each
Typical price:$5.83 / Each
Quantity:
Wago 2606-3103/020-000
Brand: Wago
Part Number: 2606-3103/020-000
Additional Description: WAGO-2606-3103/020-000 PCB TERMINAL BLOCK; LEVER; 6 MM ; PIN SPACING 7.5 MM; 3-POLE; PUSH-IN CAGE CLAMP ; 6,00 MM ; GRAY 60331731
Catalog Description: PCB terminal block; lever; 6 mm²; Pin spacing 7.5 mm; 3-pole; Push-in CAGE CLAMP®; 6,00 mm²; gray
2606-3103/020-000 Item Features
- Push-in termination of solid and ferruled conductors
- Intuitive and tool-free operation
- Several clamping units can be held open simultaneously, simplifying the connection of multi-core cables
- Testing can be performed both parallel and perpendicular to conductor entry
2606-3103/020-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2461140Part Number #2606-3103/020-000UNSPSC39121421UPC04055143586610
