2616-1101
Wago 2616-1101
Part Number # 2616-1101
SKU # 2468416
$3.61 / Each
Typical price:$3.91 / Each
Wago 2616-1101 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2616-1101 |
| SKU #: | 2468416 |
| Amperage Rating: | 76 A |
| Dimensions: | 1.465 in H x 0.504 in W x 1.26 in D |
| Number of Poles: | 1 |
| Spacing: | 0.39 in |
| Type: | Lever |
| Wire Size: | 18 to 4 AWG |
| Connection type: | Push-In |
| Material: | Polyamide |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04055143692762 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3.61 / Each
Typical price:$3.91 / Each
Quantity:

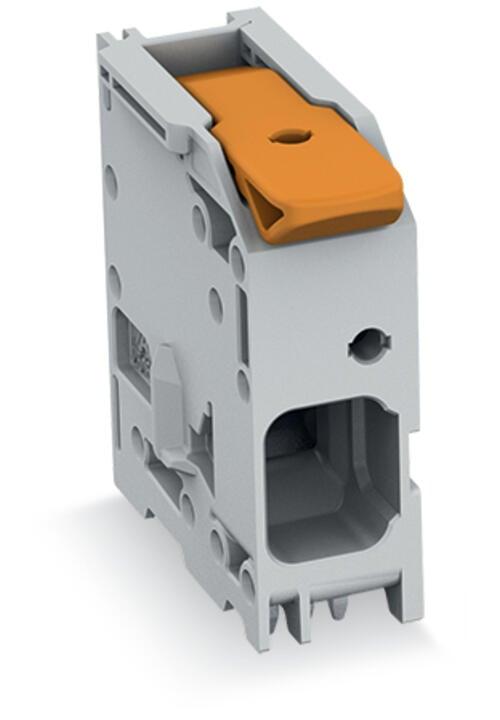

- WAGO, 2616-1101, PCB Terminal Block, Lever, 1000 V, 76 A, 1 Pole, 18 to 4 AWG Wire, 0.71 to 0.79 in Wire Strip Length, 0.39 in Spacing, Push-In Connection, Polyamide, Gray, 1.465 in H x 0.504 in W x 1.26 in D Dimensions
2616-1101 Item Features
- Push-in termination of solid and ferruled conductors
- Intuitive and tool-free operation
- Several clamping units can be held open simultaneously, simplifying the connection of multi-core cables
- Testing can be performed both parallel and perpendicular to conductor entry
2616-1101 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2468416Part Number #2616-1101UNSPSC39121421UPC04055143692762
Image provided may only be a representation of final product and may include optional equipment
