Part Number # 736-116
SKU # 2437162
Image Disclaimers Message
736-116
Wago 736-116
Part Number # 736-116
SKU # 2437162
$14.20 / Each
Typical price:$15.38 / Each
Wago 736-116 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 736-116 |
| SKU #: | 2437162 |
| Amperage Rating: | 23 A |
| Dimensions: | 1.201 in H x 3.189 in W x 0.827 in D |
| Number of Poles: | 32 |
| Spacing: | 0.197 in |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Color: | Gray |
| Connection type: | Clamp |
| Material: | Polyamide |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04044918913744 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$14.20 / Each
Typical price:$15.38 / Each
Quantity:
Wago 736-116
Brand: Wago
Part Number: 736-116

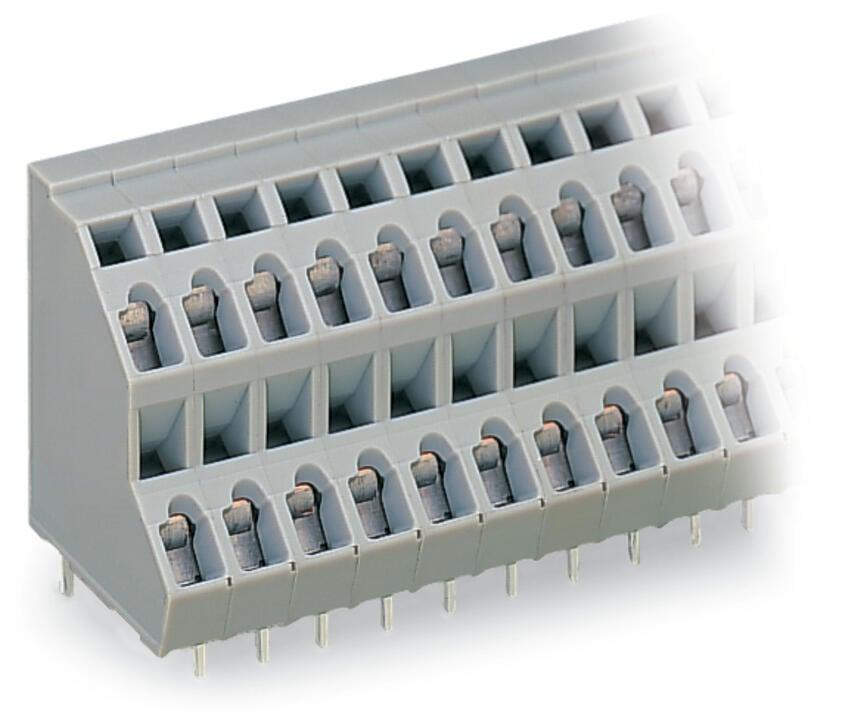

Additional Description: WAGO-736-116 DOUBLE-DECK PCB TERMINAL BLOCK; 2.5 MM; PIN SPACING 5 MM; 2 X 16-POLE; CAGE CLAMP; 2,50 MM; GRAY 51151733
Catalog Description: Double-deck PCB terminal block; 2.5 mm²; Pin spacing 5 mm; 32-pole; CAGE CLAMP®; 2,50 mm²; gray
736-116 Item Features
- PCB terminal strips with screwdriver-actuated CAGE CLAMP connection
- High-density, double-deck design for space-efficient wiring of multiple conductors in confined areas
- Custom marking for all termination levels
736-116 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2437162Part Number #736-116UNSPSC39121421UPC04044918913744
