Part Number # 769-104/022-000
SKU # 2455368
Image Disclaimers Message
769-104/022-000
Wago 769-104/022-000
Part Number # 769-104/022-000
SKU # 2455368
$7.64 / Each
Typical price:$8.28 / Each
Wago 769-104/022-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 769-104/022-000 |
| SKU #: | 2455368 |
| Amperage Rating: | 32 A |
| Dimensions: | 1.461 in H x 1.969 in W x 1.043 in D |
| Number of Poles: | 4 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Color: | Gray |
| Connection type: | Clamp |
| Material: | Polyamide |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918547543 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$7.64 / Each
Typical price:$8.28 / Each
Quantity:
Wago 769-104/022-000
Brand: Wago
Part Number: 769-104/022-000

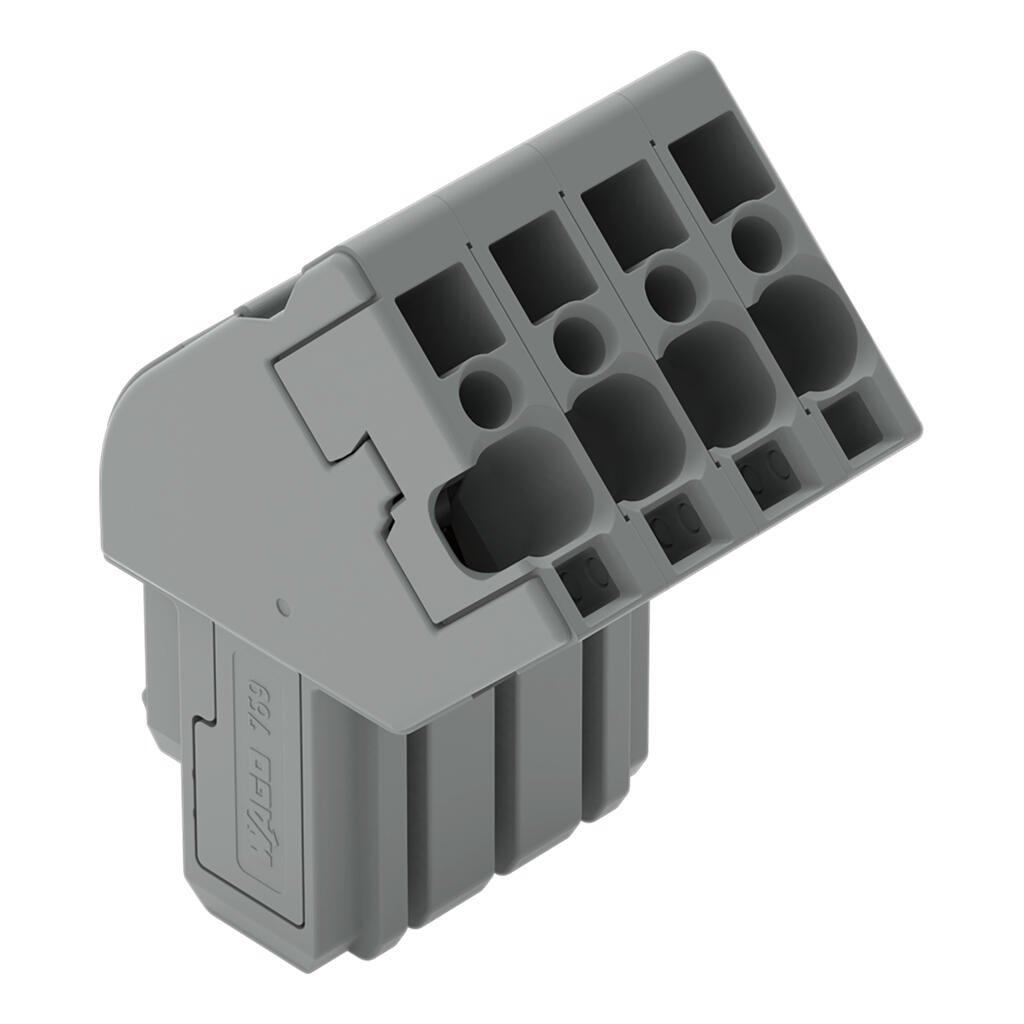

Additional Description: WAGO-769-104/022-000 1-CONDUCTOR FEMALE PLUG; ANGLED; 4 MM ; 4-POLE; 4,00 MM ; GRAY 51133590
Catalog Description: 1-conductor female connector, angled; CAGE CLAMP®; 4 mm²; Pin spacing 5 mm; 4-pole; coding finger; 4,00 mm²; gray
769-104/022-000 Standards
IEC/EN 61984|RoHS CompliantSKU #2455368Part Number #769-104/022-000UNSPSC39121410UPC04044918547543
