Part Number # 855-501/150-000
SKU # 2455865
Brand: Wago
855-501/150-000
Wago 855-501/150-000
Part Number # 855-501/150-000
SKU # 2455865
$292.71 / Each
Typical price:$317.10 / Each
Wago 855-501/150-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 855-501/150-000 |
| SKU #: | 2455865 |
| Amperage Rating: | 150 A |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04055143782760 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$292.71 / Each
Typical price:$317.10 / Each
Quantity:
Wago 855-501/150-000
Brand: Wago
Part Number: 855-501/150-000
Additional Description: WAGO-855-501/150-000 CURRENT AND VOLTAGE TAP UP TO 50 MM ; PRIMARY RATED CURRENT: 150 A; SECONDARY RATED CURRENT: 1 A; RATED POWER: 0.2 VA; ACCURACY CLASS: 0.5; FUSED 60378993
Catalog Description: Current and voltage tap up to 50 mm²; Primary rated current: 150 A; Secondary rated current: 1 A; Rated power: 0.2 VA; Accuracy class: 0.5; fused
855-501/150-000 Item Features
- Current transformer (S1 and S2) can be short circuited via jumper (2000-402)
- Power data can be directly tapped into the power supply
- Easy installation - simply insert the tap into the jumper slot of the 50 mm^2 (1/0 AWG) high-current through terminal block
- Fuse-protected voltage path
855-501/150-000 Standards
EN 61869-2|EN 60947-7-3|RoHS Compliant|CE|IP20SKU #2455865Part Number #855-501/150-000UNSPSC43232306UPC04055143782760

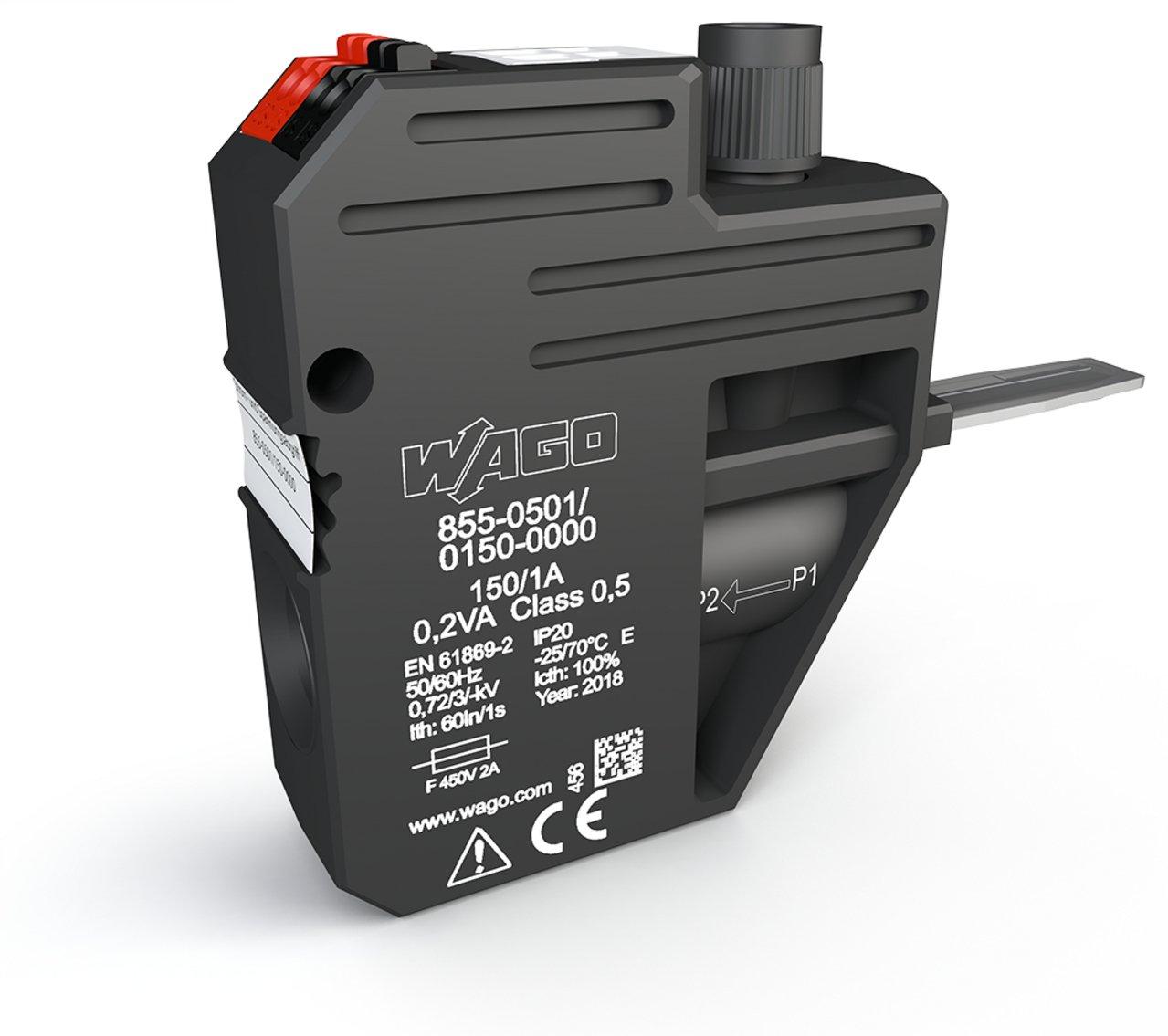

Image provided may only be a representation of final product and may include optional equipment
