Part Number # 857-1330
SKU # 2452044
Image Disclaimers Message
Wago 857-1330 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 857-1330 |
| SKU #: | 2452044 |
| Amperage Rating: | 4 A |
| Dimensions: | 3.701 in H x 0.236 in W x 3.85 in D |
| Enclosure Type: | IP20 |
| Indicator: | Yellow LED |
| Temperature Rating (Degrees F): | -25 to 50 deg C |
| Connection type: | Push-In |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04050821099796 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$79.63 / Each
Quantity:

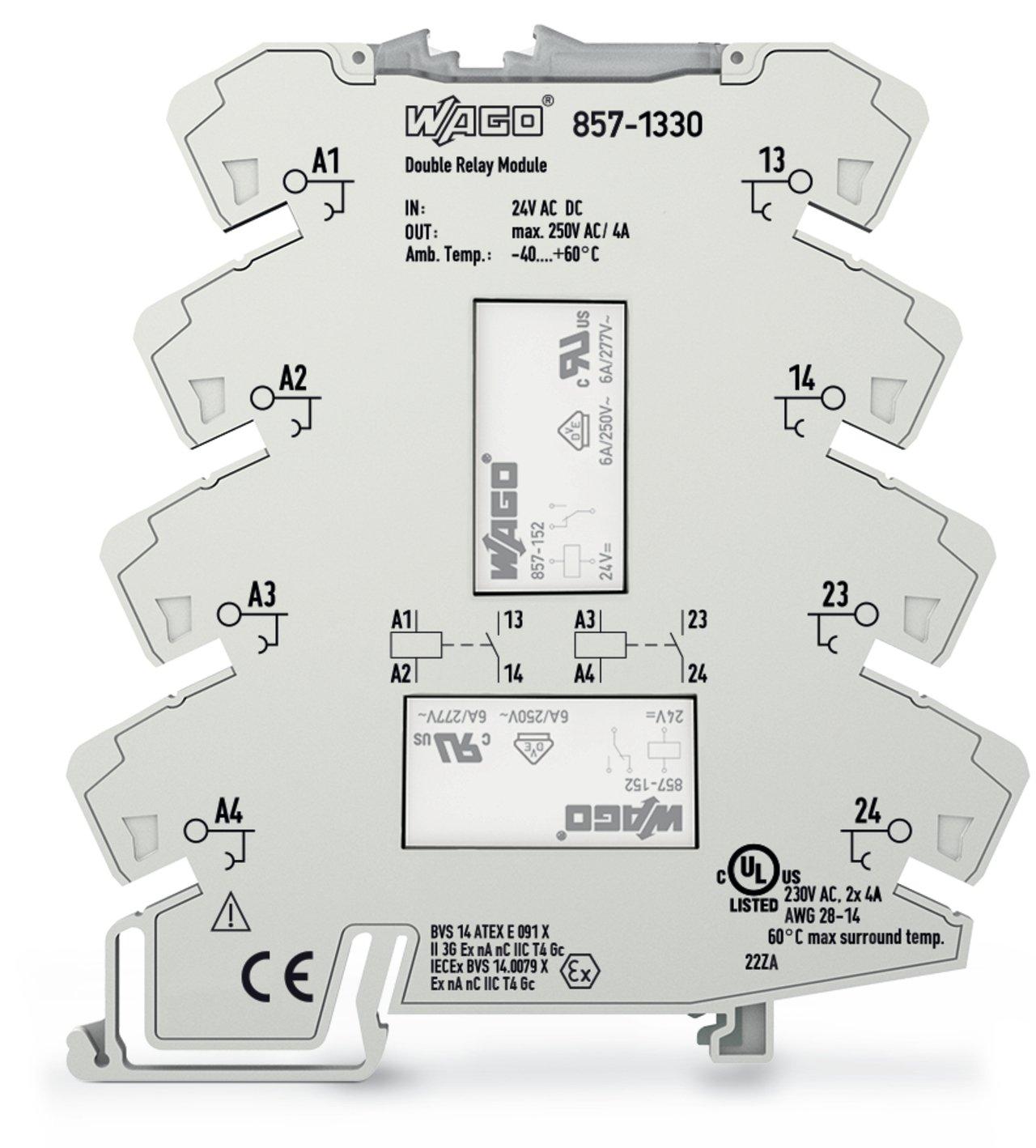

Wago 857-1330
Brand: Wago
Part Number: 857-1330
Additional Description: WAGO-857-1330 RELAY MODULE; 2-PORT; NOMINAL INPUT VOLTAGE: 24 V AC/DC; 1 MAKE CONTACT; LIMITING CONTINUOUS CURRENT: 4 A; YELLOW STATUS INDICATOR; MODULE WIDTH: 6 MM; 2,50 MM 8571330
Catalog Description: Relay module; 2-port; Nominal input voltage: 24 V AC/DC; 1 make contact; Limiting continuous current: 4 A; Yellow status indicator; Module width: 6 mm; 2,50 mm²
857-1330 Standards
EN 61010-2-201|EN 61810-1|EN 61373|UL 508|ATEX|IECEx|RoHS Compliant|IP20SKU #2452044Part Number #857-1330UNSPSC43232306UPC04050821099796
