Part Number # 857-500
SKU # 2261488
Brand: Wago
857-500
Wago 857-500
Part Number # 857-500
SKU # 2261488
$448.97 / Each
Wago 857-500 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 857-500 |
| SKU #: | 2261488 |
| Dimensions: | 3.701 in H x 0.236 in W x 3.85 in D |
| Input Type: | Frequency |
| Input Voltage: | 24 V DC, 24 VDC |
| Temperature Rating (Degrees F): | -25 to 70 deg C |
| Connection type: | Push-In |
| Material: | Polyamide (PA66) |
| Mounting type: | 35 mm DIN Rail |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04050821226741 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$448.97 / Each
Quantity:
Wago 857-500
Brand: Wago
Part Number: 857-500

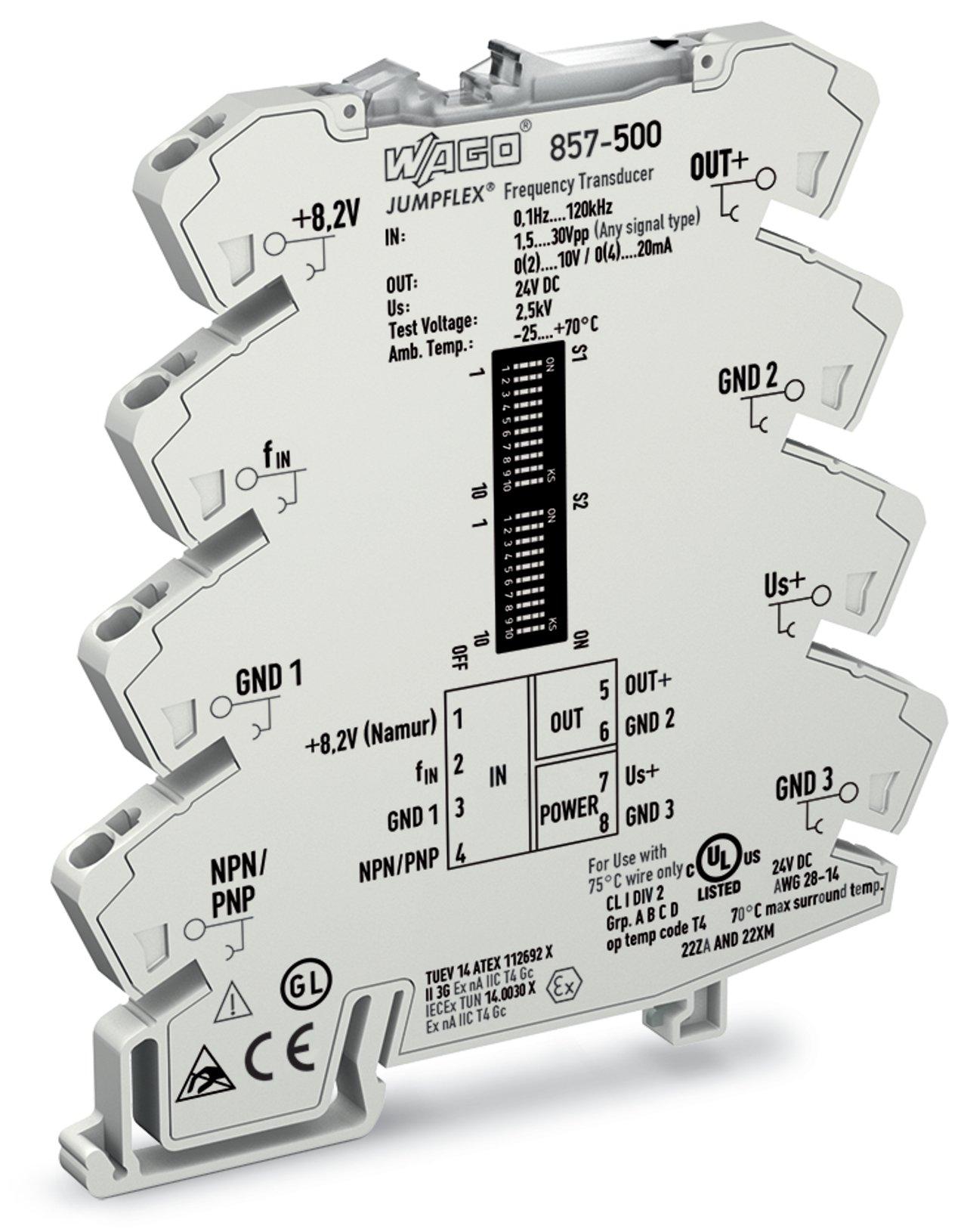

Additional Description: WAGO-857-500 FREQUENCY SIGNAL CONDITIONER JUMPFLEX TRANSDUCER
Catalog Description: Frequency signal conditioner; Current and voltage output signal; Configuration via software; Supply voltage: 24 VDC; 6 mm module width
857-500 Item Features
- PC configuration interface
- Signal acquisition from NAMUR, NPN or PNP sensors
- Calibrated measurement range switching
- 3-way electrical isolation with 2.5 kV test voltage
857-500 Standards
EN 61373|EN 61373|RoHS Compliant|CE|IP20SKU #2261488Part Number #857-500UNSPSC43232306UPC04050821226741
Image provided may only be a representation of final product and may include optional equipment
