0178220000

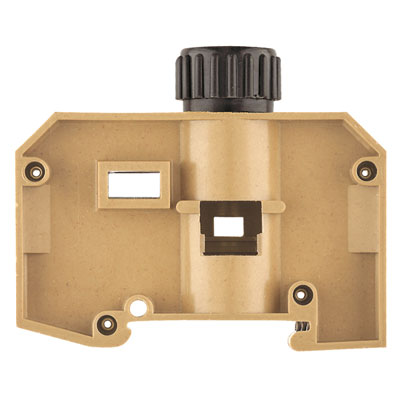

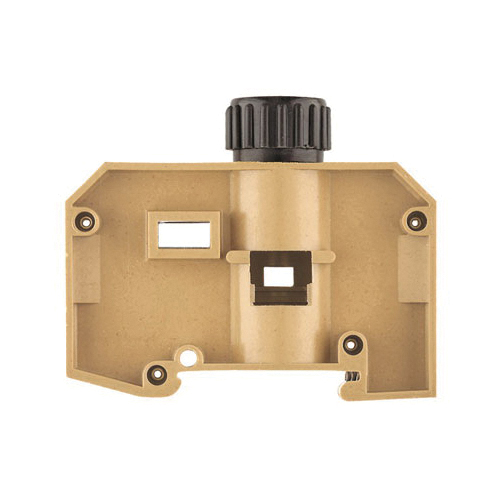

Weidmuller 0178220000 Electrical Terminal
Part Number # 0178220000
SKU # 364514
$0.00 / 20Each
Typical price:$321.02 / Each
Weidmuller 0178220000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 0178220000 |
| SKU #: | 364514 |
| Dimensions: | 2.953 in H x 0.945 in W x 2.559 in D |
| Series: | SAK |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Torque Rating: | 1.2 to 2.4 N-m |
| Wire Size: | 26 to 8 AWG |
| Material: | KrG |
| Mounting type: | Snap-Fit |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04008190095987 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$0.00 / 20Each
Typical price:$321.02 / Each
Quantity:
- Klippon Fuse Terminal Block, Series: SAK, 600 V AC, 16 A, 26 to 8 AWG Wire, 14 mm Wire Strip Length, 10 sq-mm Terminal, 1.2 to 2.4 N-m Torque, Snap-Fit Mounting, Screw Connection, -60 to 130 deg C, KrG, Medium Yellow, 2.953 in H x 0.945 in W x 2.559 in D Dimensions
0178220000 Item Features
- Fuse cartridge, for screwable cross-connection, one end without connector
- TS 35 mounting rail
- Closed open sides
- 10 sq-mm further connection, conductor cross-section, flexible plus plastic collar DIN 46228/1
- 1 x 5.5 mm blade
- On side connection direction
- 0.5 to 16 sq-mm minimum/maximum clamping range, rated connection
- 0.5 to 10 sq-mm minimum/maximum rated wire connection cross-section, finely stranded with wire to end ferrules and plastic collars DIN 46228/1
- B6 gauge to IEC 60947-1
- 2 number of connections
- 4 torque level with DMS electric screwdriver
- 1 number of similar terminal
- 400 VAC/DC operating voltage for display
- For screw fixing fuse holder
- UL 94 flammability rating 5 VA
- 0.56 mOhm volume-resistance according to IEC 60947-7-x
- 6 kV rated impulse withstand voltage
- 3 pollution severity
- SAKS 4/35 USA type
- https://www.youtube.com/watch?v=DBdk5eXPQb8
0178220000 Standards
CSA Certified|CE Certified|cURUS Listed|EAC|RoHS compliantSKU #364514Part Number #0178220000UNSPSC39121410UPC04008190095987
Image provided may only be a representation of final product and may include optional equipment
