0191220000
Weidmuller 0191220000 Electrical Terminal
Part Number # 0191220000
SKU # 2254067
$430.60 / 20Each
Typical price:$454.46 / Each
Weidmuller 0191220000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 0191220000 |
| SKU #: | 2254067 |
| Dimensions: | 54 mm H x 13 mm W x 61 mm D |
| Series: | SAK |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Terminal Size: | M4 |
| Torque Rating: | 1.2 to 2.4 N-m |
| Wire Size: | 10 sq-mm |
| Material: | KrG |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04008190095260 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$430.60 / 20Each
Typical price:$454.46 / Each
Quantity:
Weidmuller 0191220000 Electrical Terminal
Brand: Weidmuller
Part Number: 0191220000

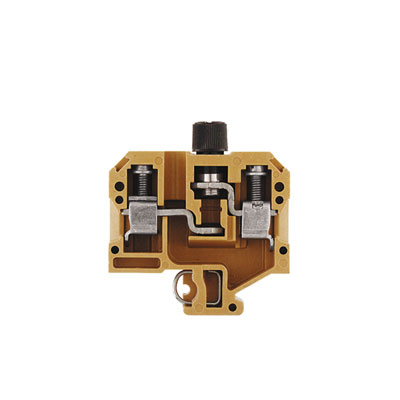

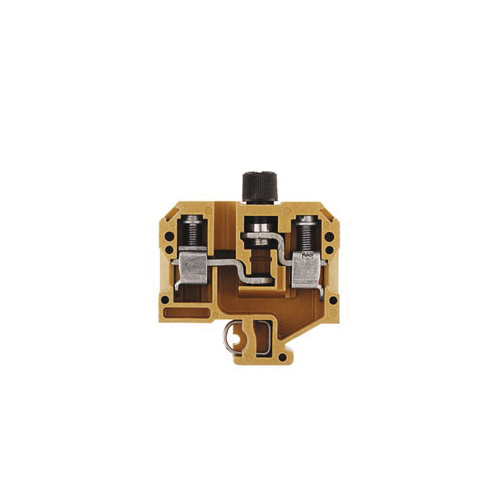

Additional Description: WEID-0191220000 SAKS 1/G20 FUSE TERMINAL, SCREW CONNECTION, FUSE CARTRIDGE, ONE END WITHOUT CONNECTOR, SCREW CONNECTION, 10 MM, 500 V, 10 A, G-SI. 5 X 20, MEDIUM YELLOW
Catalog Description: Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity. With removable carrier for a cartridge fuse.
0191220000 Item Features
- Klippon connect with clamping yoke technology
- The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimizes operational safety
- Klippon connect provides a proven response to a range of different requirements
0191220000 Standards
RoHS Compliant|UL File No. E60693|UL 94 V-0/5VA Flammability Rating|CSA File No. 12400-198|UL File No. E60693|CE Certified|EAC Certified|Lloyds Register|PRMS Certified|UL/cULus File No. E60693|CSA File No. 12400-198SKU #2254067Part Number #0191220000UNSPSC39121410UPC04008190095260
Image provided may only be a representation of final product and may include optional equipment
