Part Number # 0224261001
SKU # 1551633
Image provided may only be a representation of
final product and may include optional equipment
0224261001

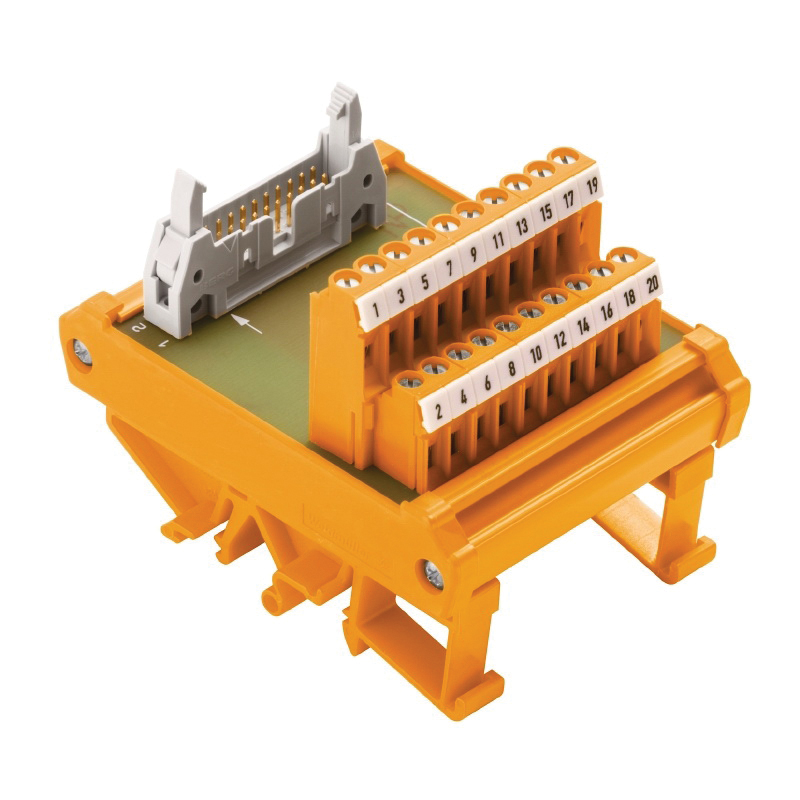

Weidmuller 0224261001 Terminal Block
Part Number # 0224261001
SKU # 1551633
Weidmuller 0224261001 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 0224261001 |
| SKU #: | 1551633 |
| Amperage Rating: | 1 A |
| Dimensions: | 65 mm L x 87 mm W x 70 mm H |
| Number of Poles: | 20 |
| Temperature Rating (Degrees F): | 0 to 55 deg C |
| Torque Rating: | 0.5 to 0.6 N-m |
| Type: | Passive |
| Wire Size: | 26 to 12 AWG |
| Connection type: | Screw |
| Country of origin: | PL |
| Mounting type: | Rail |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151703 |
| UPC: | 04032248047161 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 0224261001 Terminal Block
Brand: Weidmuller
Part Number: 0224261001
RSF Interface, Wire Size: 26 - 12 AWG, Amperage Rating: 1 AMP, Voltage Rating: 60 VAC/75 VDC, Connection: Screw, Dimensions: 65 MM Depth X 87 MM Width X 70 MM Height, Operating Temperature: 0 - 55 DEG C, Stripping Length: 6 MM, Clamping Range: 0.13 - 6 SQ-MM, CE Certified, EAC Certified, PCT ME25, RoHS Compliant
Additional Description: WEID-0224261001 0224260000 RS F20 LP2N 5/20 INTERFACE MODULE WITH TERMINAL, CONNECTOR, PLUG-IN CONNECTOR IN ACC. WITH IEC60603-13 / DIN41651, 20-POLE, LL2N 5.08 MM, SCREW CONNECTION
Catalog Description: Transfer module as an interface with terminals and connectors.
0224261001 Application
For flat cable and general purpose applications0224261001 Item Features
- Passive interfaces for signal transmission on a flat cable connector equipped with a clamping yoke connection in accordance with IEC 603-1 / DIN 41651
- Group with 10 to 64-pole connectors
- One-to-one electrical connection between controller and field connections
- Very compact modules can be attached to conventional TS35 or TS32 mounting rails
- Longer attachment hooks
0224261001 Standards
RoHS Compliant|REACH SVHC Lead 7439-92-1|DIN EN 50178|DIN 41651|IEC 60603-13|GOST ME25|CE Certified|EAC CertifiedSKU #1551633Part Number #0224261001UNSPSC32151703UPC04032248047161
