Brand: Weidmuller
Weidmuller 0224461001 Control Relay
Part Number # 0224461001
SKU # 2319244
Brand: Weidmuller
0224461001
Weidmuller 0224461001 Control Relay
Part Number # 0224461001
SKU # 2319244
$79.35 / Each
Weidmuller 0224461001 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 0224461001 |
| SKU #: | 2319244 |
| Dimensions: | 115 mm L x 87 mm W x 70 mm H |
| Number of Poles: | 40 |
| UNSPSC: | 32151703 |
| UPC: | 04032248047048 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$79.35 / Each
Quantity:

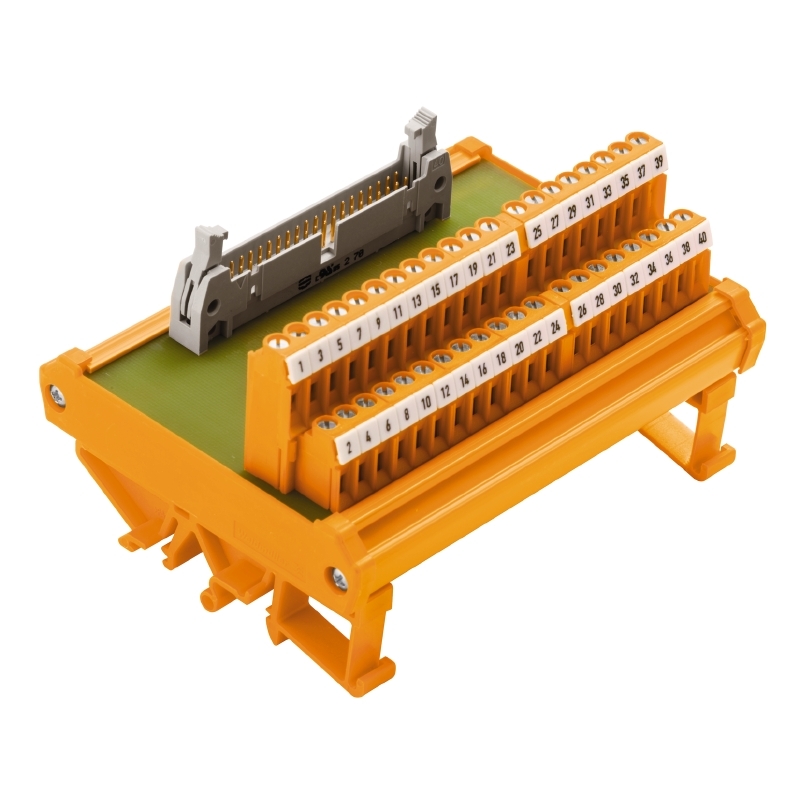

- Weidmuller Interface Module, Passive, 60 V AC/75 V DC, 1 A, 40 Pole, 26 to 12 AWG Wire, 6 mm Wire Strip Length, 0.5 to 0.6 N-m Torque, DIN Rail Mounting, Screw Connection, 0 to 55 deg C, 115 mm L x 87 mm W x 70 mm H Dimensions
0224461001 Application
For flat cable and general purpose applications0224461001 Item Features
- Passive interfaces for signal transmission on a flat cable connector equipped with a clamping yoke connection in accordance with IEC 603-1 / DIN 41651
- Group with 10 to 64-pole connectors
- One-to-one electrical connection between controller and field connections
- Very compact modules can be attached to conventional TS35 or TS32 mounting rails
- Longer attachment hooks
0224461001 Standards
RoHS Compliant|REACH SVHC Lead 7439-92-1|DIN EN 50178|DIN 41651|IEC 60603-13|GOST ME25|CE Certified|EAC CertifiedSKU #2319244Part Number #0224461001UNSPSC32151703UPC04032248047048
Image provided may only be a representation of final product and may include optional equipment
