0248920000

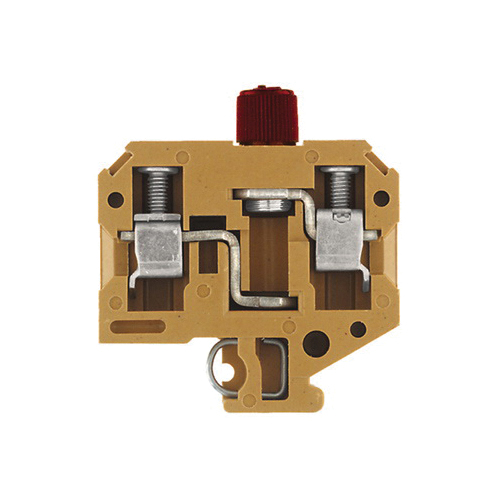

Weidmuller 0248920000 Terminal Block
Part Number # 0248920000
SKU # 42349
Weidmuller 0248920000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 0248920000 |
| SKU #: | 42349 |
| Dimensions: | 2.126 in H x 0.512 in W x 2.402 in D |
| Series: | SAK |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Torque Rating: | 1.2 to 2.4 N-m |
| Material: | KrG |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04008190109738 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 0248920000 Terminal Block
Brand: Weidmuller
Part Number: 0248920000
Weidmueller 0248920000 Fuse Terminal, SAK-Series Single Tier, 2 Terminal, Wire Size: 26 - 8 AWG Factory Wiring UL, 22 - 8 AWG Field Wiring UL, 22 - 10 AWG CSA, M4 Terminal, 5 AMP UL, 10 AMP CSA, Voltage Rating: 500 V Rated, 600 V UL, 600 V CSA, Material: V-0, 5VA UL 94 Flammable KrG, Medium Yellow, Mounting: Snap-On in TS 32, Screw On Side Connection, 54 MM Length X 13 MM Width X 61 MM Height, 2 Clamping Points Per Level, 6 KV Rated Impulse Withstand Voltage, -60 To 130 DEG C Continuous Operatin
Additional Description: WEID-0248920000 SAKS 3 GZ/6.3X32 FUSE TERMINAL, SCREW CONNECTION, FUSE CARTRIDGE, ONE END WITHOUT CONNECTOR, SCREW CONNECTION, 10 MM, 500 V, 10 A, G-SI. 6.3 X 32, MEDIUM YELLOW
Catalog Description: Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity. With removable carrier for a cartridge fuse.
0248920000 Item Features
- Fuse cartridge, one end without connector
- TS 35 mounting rail
- Right open sides
- 10 sq-mm, screw connection
- 1 x 5.5 mm blade
- On side connection direction
- 0.33 to 16 sq-mm minimum/maximum clamping range, rated connection
- 0.5 to 10 sq-mm minimum/maximum rated wire connection cross-section, finely stranded with wire to end ferrules and plastic collars DIN 46228/1
- B6 gauge to IEC 60947-1
- 2 number of connections
- 4 torque level with DMS electric screwdriver
- 1 number of similar terminal
- UL 94 flammability rating 5 VA
- 0.56 mOhm volume-resistance according to IEC 60947-7-x
- G-Si 6.3 x 32 cartridge fuse
- For screw fixing fuse holder
- 6 kV rated impulse withstand voltage
- 3 pollution severity
- SAKS 3 GZ/6.3X32 type
- https://www.youtube.com/watch?v=DBdk5eXPQb8
0248920000 Standards
CSA|CE Certified|EAC|GERMLLOYD|LLOYDSREG|MARITREG|UR|RoHS CompliantSKU #42349Part Number #0248920000UNSPSC39121410UPC04008190109738
Image provided may only be a representation of final product and may include optional equipment
