0274220000
Weidmuller 0274220000 Electrical Terminal
Part Number # 0274220000
SKU # 42355
$312.00 / 50Each
Typical price:$346.35 / Each
Weidmuller 0274220000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 0274220000 |
| SKU #: | 42355 |
| Dimensions: | 0.591 in H x 2.136 in W x 0.634 in D |
| Type: | Multi-Pin |
| Wire Size: | 12 to 22 AWG |
| UNSPSC: | 39121410 |
| UPC: | 04008190153847 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$312.00 / 50Each
Typical price:$346.35 / Each
Quantity:
- Klippon Terminal Strip, Multi-Pin, Series: MK Series, 400 V AC, 24 A, 12 to 22 AWG Wire, 0.4 to 0.45 N-m, Screw, -60 to 130 deg C, KrG, Medium Yellow, 0.591 in H x 2.136 in W x 0.634 in D
0274220000 Item Features
- Klippon connect with clamping-yoke technology
- The high reliability and variety of designs of the terminal blocks with clamping-yoke connections make planning easer and optimizes operational safety
- Klippon connect provides a proven response to a range of different requirements
- 25 A current size C (CSA), 300 VAC voltage size C (CSA), 12 to 22 AWG wire cross-section (CSA)
- 0.6 x 3.5 mm blade, 0.33 to 4 sq-mm clamping range, rated connection, M2.5 clamping screw
- A2 gauge to IEC 60947-1, 12 connections, 5 mm L stripping
- 12 to 22 AWG wire connection cross-section, 0.5 to 1.5 sq-mm wire connection cross-section, finely stranded with wire end ferrules DIN 46228/1, rated connection, 1 torque level with DMS electric screwdriver
- 0.5 to 4 sq-mm wire connection cross-section, solid core rated connection, 2.5 to 1.5 sq-mm wire connection cross-section, stranded, rated connection, 0.5 to 2.5 sq-mm wire connection cross-section, finely stranded, 18.5 mm fixing dimension
- 2.5 sq-mm rated cross-section, 6 kV rated impulse withstand voltage, 3 pollution severity
- 12 to 22 AWG conductor size factory wiring (UR), 12 to 22 AWG conductor size field wiring, 20 A current size B, 5 A current size D (UR), 300 VAC voltage size B, 600 VAC voltage size D (UR)
- UL 94 flammability rating 5 VA, mounting plate mounting rail
- 6-poles
- Direct mounting installation advice
- MK 3/6 type
- https://www.youtube.com/watch?v=DBdk5eXPQb8
0274220000 Standards
UL File No. E60693, File No. UR E60693 Listed|CSA 12400-149|IEC 60947-7-1|CE Certified|EAC Approved|Kema eur, CURSEX|RoHS CompliantSKU #42355Part Number #0274220000UNSPSC39121410UPC04008190153847

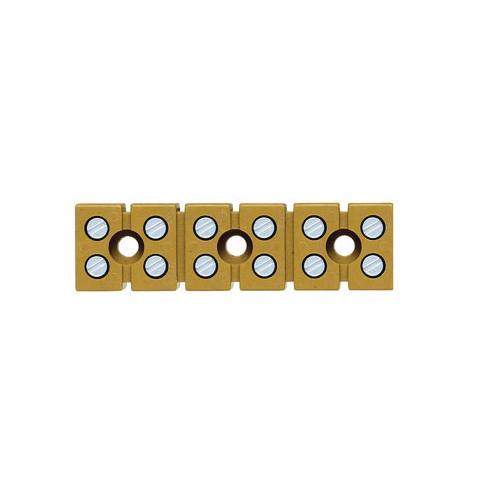

Image provided may only be a representation of final product and may include optional equipment
