Weidmuller 0274620000 Klippon Terminal Strip
Part Number # 0274620000
SKU # 310636
Weidmuller 0274620000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 0274620000 |
| SKU #: | 310636 |
| Amperage Rating: | 24 A |
| Barrier Style: | Enclosed |
| Dimensions: | 15 mm H x 91.25 mm W x 16.1 mm D |
| Number of Terminals: | 2 |
| Screw Size: | M2.5 |
| Series: | SAK |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Torque Rating: | 0.4 to 0.45 N-m |
| Type: | 10-Pole |
| Wire Size: | 22 to 12 AWG |
| Connection type: | Screw |
| Country of origin: | HU |
| Material: | Melamine |
| Mounting type: | Surface |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04008190117559 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

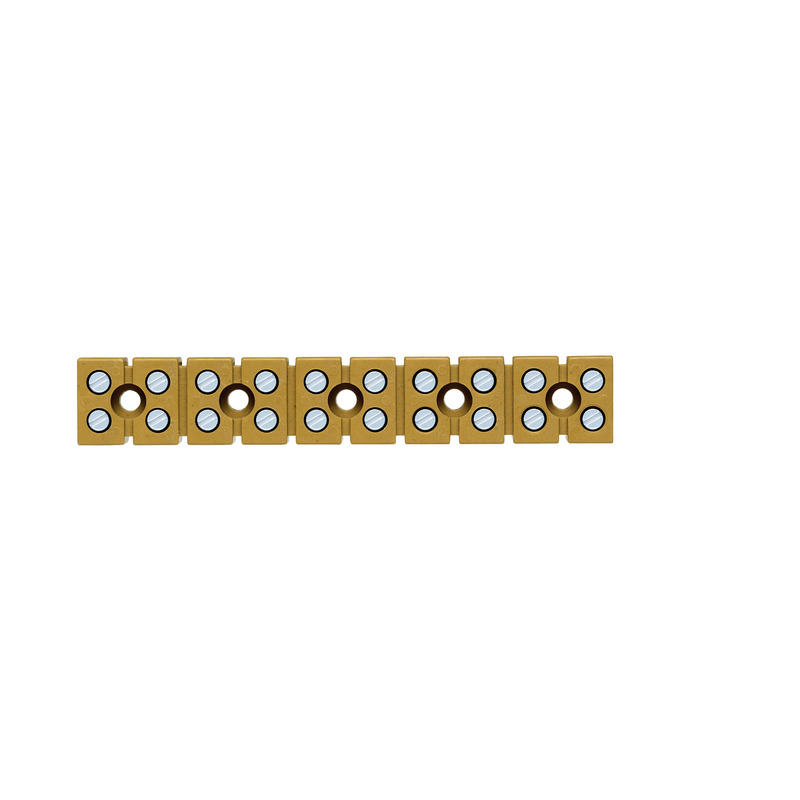

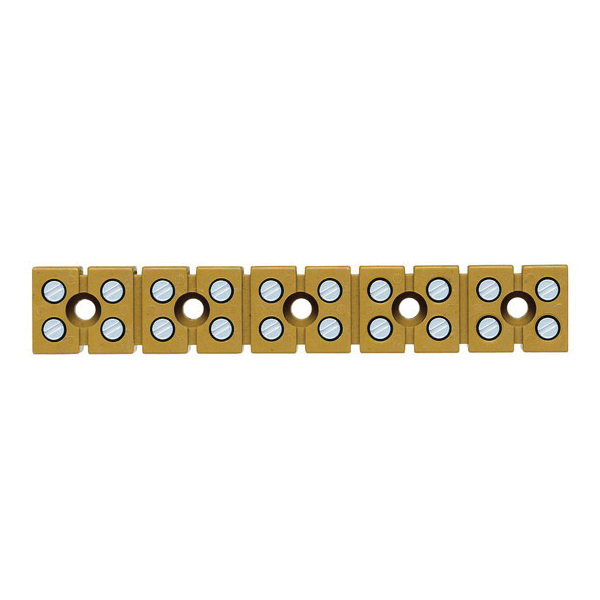

Weidmuller 0274620000 Klippon Terminal Strip
Brand: Weidmuller
Part Number: 0274620000
Klippon Terminal Strip, 10-Pole, Series: SAK, 400 V, 24 A, 2 Terminals, 22 to 12 AWG Wire, Enclosed Barrier Style, M2.5 Screw, 0.4 to 0.45 N-m Torque, Surface Mounting, Screw Connection, -60 to 130 deg C, Melamine, Medium Yellow, 15 mm H x 91.25 mm W x 16.1 mm D Dimensions
Additional Description: WEID-0274620000 MK 3/10 SINGLE- AND MULTI-POLE TERMINAL STRIP, SCREW CONNECTION, 2.5 MM, 400 V, 24 A, NUMBER OF POLES: 10, 91.25 MM, MEDIUM YELLOW
Catalog Description: Terminal strip for screwing directly to the bottom of the housing.
0274620000 Includes
00274620000 Item Features
- High reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimizes operational safety
- Klippon connect provides a proven response to a range of different requirements
0274620000 Standards
RoHS Compliant|EAC Certified|CSA Certified|cULus Recognized|CE Certified|cULus Ex Recognized|KEMA-KEUR Certified|UL File No. E60693|IEC 60947-7-1|UL 94 5VA Flammability RatingSKU #310636Part Number #0274620000UNSPSC39121410UPC04008190117559
Image provided may only be a representation of final product and may include optional equipment
