0317200000
Weidmuller 0317200000 Ferrule
Part Number # 0317200000
SKU # 2173458
$26.50 / 50Each
Typical price:$29.65 / Each
Weidmuller 0317200000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 0317200000 |
| SKU #: | 2173458 |
| Conductor Size: | 2 AWG |
| Overall Length: | 30 mm |
| Temperature Rating (Degrees F): | 105 deg C |
| Type: | Type H35.0/30 |
| Connection type: | Crimped |
| Contact material: | Electro-Galvanized Cathode Copper |
| Country of origin: | DE |
| Insulation material: | Polypropylene |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163102 |
| UPC: | 04008190023904 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$26.50 / 50Each
Typical price:$29.65 / Each
Quantity:
- Weidmuller Wire End Ferrule, Type H35.0/30, 2 AWG Conductor, Polypropylene Insulation, Crimped, Electro-Galvanized Cathode Copper Contact, 105 deg C, 30 mm Overall Length, Beige
0317200000 Item Features
- Polypropylene conical entry funnel
- Heat-resistant up to 105 deg C
- The entry funnel can also be manufactured from a non-flammable material on request
- Dimensional tolerances to DIN 46228 Part 4
- 0.2 mm metal sleeve thickness
- 0.4 mm plastic collar thickness
- 35 sq-mm conductor cross-section
- 8.3 mm contact surface diameter
- 12.7 mm collar diameter
- 19 mm stripping length
0317200000 Standards
CSA-US Certified|RoHS CompliantSKU #2173458Part Number #0317200000UNSPSC31163102UPC04008190023904

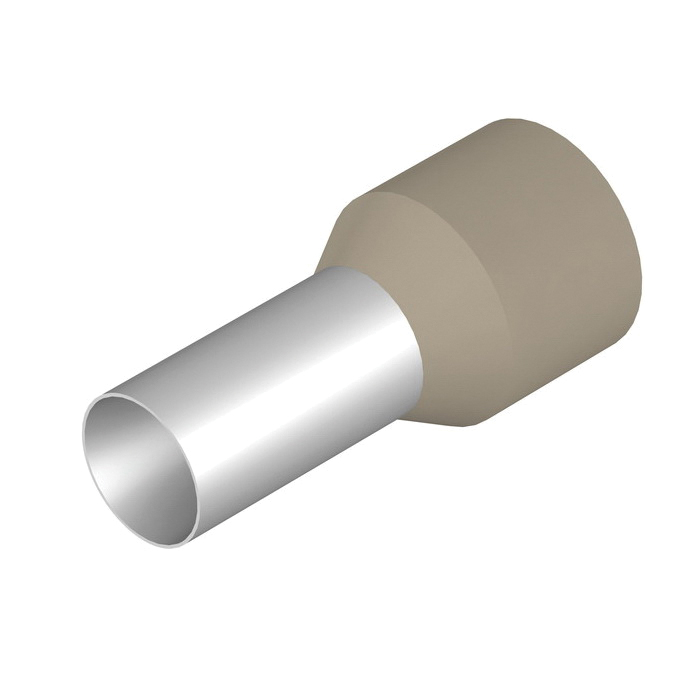

Image provided may only be a representation of final product and may include optional equipment
