Part Number # 0317300000
SKU # 2222278
Image Disclaimers Message
0317300000

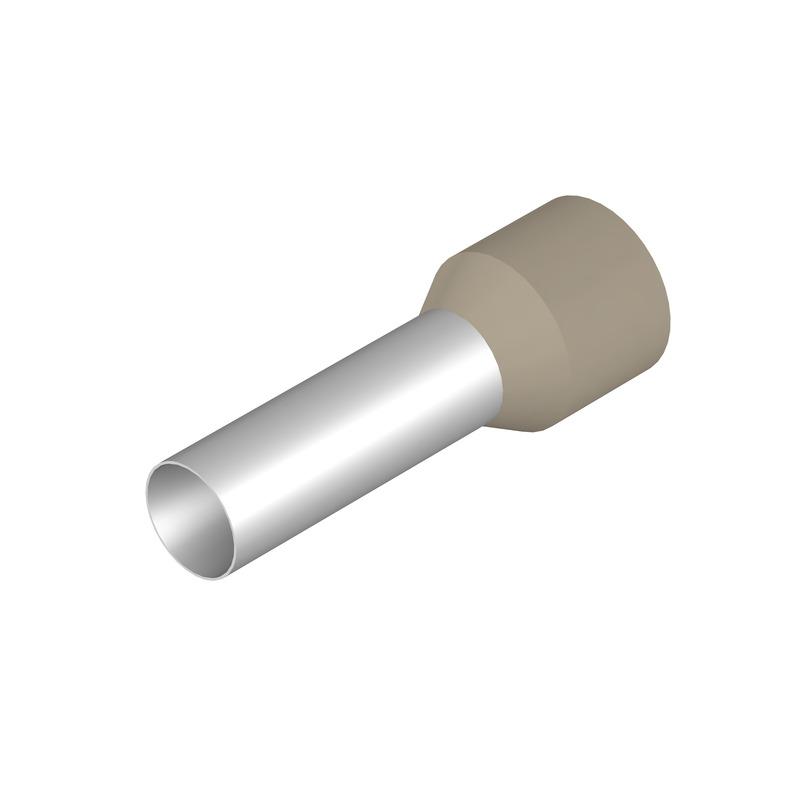

Weidmuller 0317300000 Wire End Ferrule
Part Number # 0317300000
SKU # 2222278
Weidmuller 0317300000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 0317300000 |
| SKU #: | 2222278 |
| Conductor Size: | 2 AWG |
| Overall Length: | 39 mm |
| Temperature Rating (Degrees F): | 105 deg C |
| Type: | Type H35.0/39 |
| Color: | Beige |
| Connection type: | Crimped |
| Contact material: | Electro-Galvanized Cathode Copper |
| Country of origin: | DE |
| Insulation material: | Polypropylene |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163102 |
| UPC: | 04008190151294 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 0317300000 Wire End Ferrule
Brand: Weidmuller
Part Number: 0317300000
Weidmuller Wire End Ferrule, Type H35.0/39, 2 AWG Conductor, Insulated Insulation, Polypropylene Insulation, Crimped, Electro-Galvanized Cathode Copper Contact, 105 deg C, 39 mm Overall Length, Beige
Additional Description: WEID-0317300000 H35,0/39 BE WIRE END FERRULE, STANDARD, 35 MM, STRIPPING LENGTH: 28 MM, BEIGE PKG = 50 PC'S
Catalog Description: Electrogalvanised copper sleeve for the protection of stripped flexible conductors. Crimping the wire-end ferrule protects the wires and enables permanently stable electrical connections.
0317300000 Includes
00317300000 Item Features
- Polypropylene conical entry funnel
- Heat-resistant up to 105 deg C
- The entry funnel can also be manufactured from a non-flammable material on request
- Dimensional tolerances to DIN 46228 Part 4
- 0.2 mm metal sleeve thickness
- 0.4 mm plastic collar thickness
- 35 sq-mm conductor cross-section
- 8.3 mm contact surface diameter
- 12.7 mm collar diameter
- 28 mm stripping length
0317300000 Standards
CSA-US Certified|RoHS CompliantSKU #2222278Part Number #0317300000UNSPSC31163102UPC04008190151294
