Part Number # 0323100000
SKU # 2324845
Image Disclaimers Message
0323100000

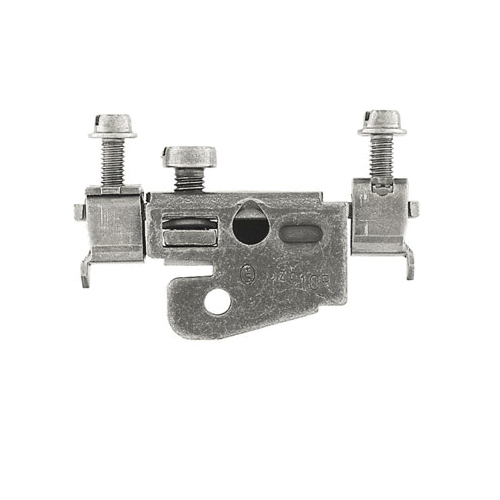

Weidmuller 0323100000 Terminal Block
Part Number # 0323100000
SKU # 2324845
Weidmuller 0323100000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 0323100000 |
| SKU #: | 2324845 |
| Dimensions: | 52 mm H x 10.2 mm W x 38 mm D |
| Series: | SAK |
| Terminal Size: | M4 |
| Torque Rating: | 1.2 to 1.6 N-m |
| Wire Size: | 10 sq-mm |
| Color: | Green/Yellow |
| Connection type: | Screw |
| Country of origin: | RO |
| Mounting type: | Screw-In |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04008190013585 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 0323100000 Terminal Block
Brand: Weidmuller
Part Number: 0323100000
Weidmueller 0323100000 PE Terminal, SAK-Series Single Tier, 2 Terminal, Wire Size: 16 - 8 AWG Rated, 26 - 8 AWG CSA, M4 Terminal, Yellow/Green, Mounting: Screwed in TS 32, Screw On Side Connection, 52 MM Length X 10.2 MM Width X 38 MM Height, 2 Clamping Points Per Level, 10 SQ-MM Wire Connection Cross Section, CSA 12400-236 Certified, IEC 60947-7-2, CE Certified, PCT ME25, ROHS Compliant
Additional Description: WEID-0323100000 EK 2 PE TERMINAL, SCREW CONNECTION, 10 MM, NUMBER OF CONNECTIONS: 2, NUMBER OF LEVELS: 1, SILVER
Catalog Description: Terminal block for connecting protective earth conductors to the mounting base (earth). Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.
0323100000 Item Features
- Klippon connect with clamping yoke technology
- The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimizes operational safety
- Klippon connect provides a proven response to a range of different requirements
0323100000 Standards
RoHS Compliant|CSA File No. 12400-236|IEC 60947-7-2|CE Certified|EAC Certified|CSA File No. 12400-236SKU #2324845Part Number #0323100000UNSPSC39121410UPC04008190013585
