0328920000
Weidmuller 0328920000 Electrical Terminal
Part Number # 0328920000
SKU # 2343006
$640.40 / 20Each
Typical price:$675.70 / Each
Weidmuller 0328920000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 0328920000 |
| SKU #: | 2343006 |
| Amperage Rating: | 10 A |
| Dimensions: | 54 mm H x 13 mm W x 53.5 mm D |
| Series: | SAK |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Terminal Size: | M4 |
| Torque Rating: | 1.2 to 2.4 N-m |
| Wire Size: | 10 sq-mm |
| Connection type: | Screw |
| Country of origin: | HU |
| Material: | KrG |
| Mounting type: | Snap-Fit |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04008190113339 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$640.40 / 20Each
Typical price:$675.70 / Each
Quantity:

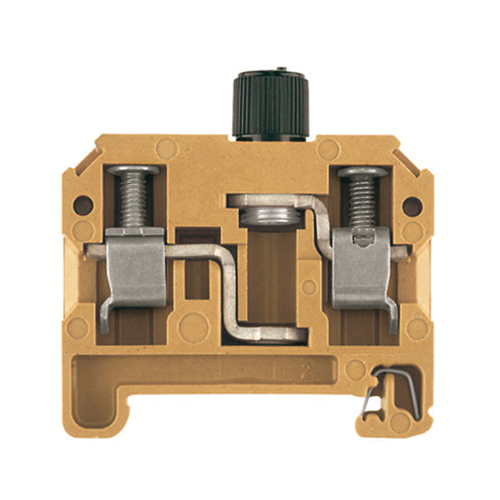

- Klippon Fuse Terminal Block, Series: SAK, 500 V, 10 A, 5 VA Power, 10 sq-mm Wire, 12 mm Wire Strip Length, M4 Terminal, 1.2 to 2.4 N-m Torque, Snap-Fit Mounting, Screw Connection, -60 to 130 deg C, KrG, Medium Yellow, 54 mm H x 13 mm W x 53.5 mm D Dimensions
0328920000 Item Features
- Klippon connect with clamping yoke technology
- The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimizes operational safety
- Klippon connect provides a proven response to a range of different requirements
0328920000 Standards
RoHS Compliant|UL File No. E60693|UL 94 V-0/5VA Flammability Rating|CSA File No. 12400-198|UL File No. E60693|CE Certified|DNV-GL Approved|EAC Certified|PRMS Certified|UL/cULus File No. E60693|CSA File No. 12400-198SKU #2343006Part Number #0328920000UNSPSC39121410UPC04008190113339
Image provided may only be a representation of final product and may include optional equipment
